Temperature Measurement

Advanced Oil & Winding Temperature Monitoring for Modern Transformers

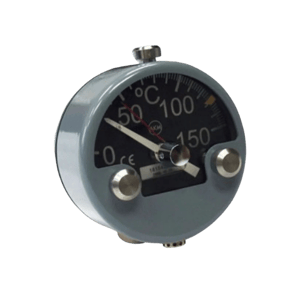

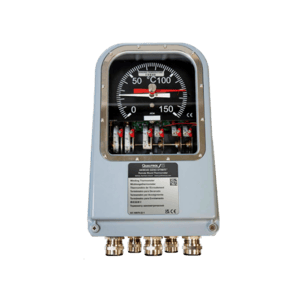

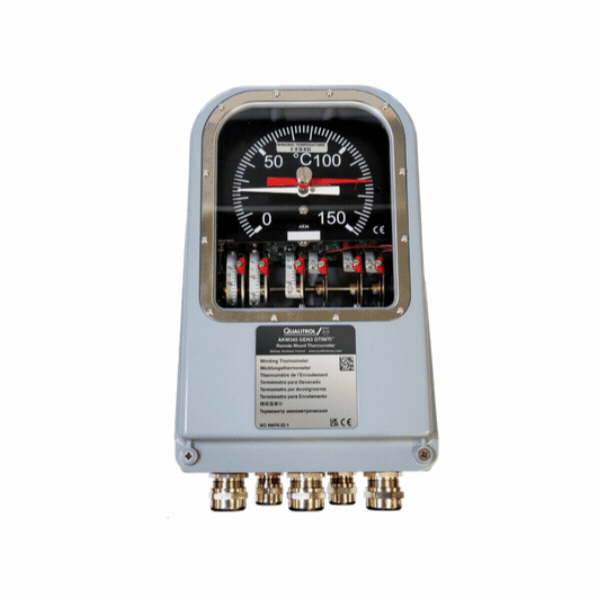

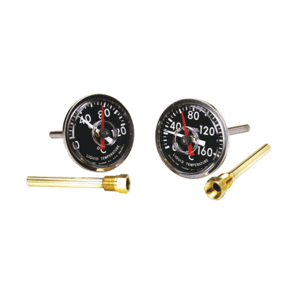

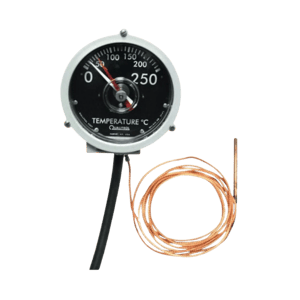

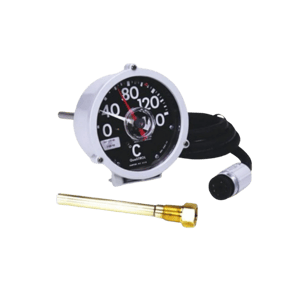

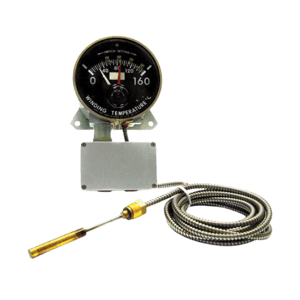

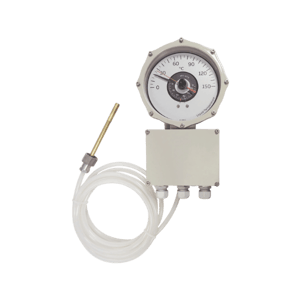

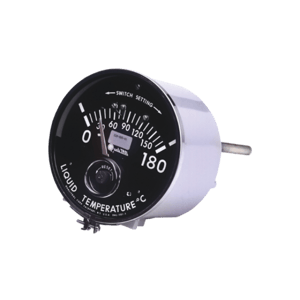

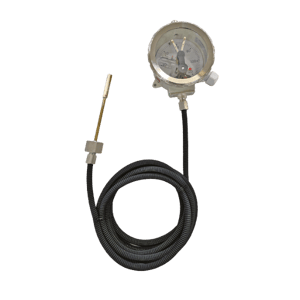

Temperature Indicators play a vital role in monitoring oil and winding temperatures across transformers of all classes. Designed for high accuracy, long‑term durability and easy integration into digital monitoring systems, these indicators help operators ensure safe operation, prevent overheating and optimise cooling performance. The AKM345 GEN3 series represents the latest evolution in temperature indication technology, combining proven bellows mechanisms with modern communication and remote‑output capabilities.

Send an Enquiry

Application Overview

These Temperature Indicators are used in transformer systems where reliable oil and winding temperature measurement is essential. Suitable for distribution, medium‑power and large‑power transformers, they support cooling control, alarm triggering, digital communication and remote monitoring. Integrated winding temperature simulation eliminates the need for external heaters or separate accessories, simplifying installation and providing precise thermal representation.

What We Solve For

Accurate transformer temperature measurement is critical for preventing insulation damage, extending equipment life and ensuring safe operation. These indicators address common pain points by providing:

Reliable temperature monitoring for both oil and simulated winding temperatures
Enhanced operational safety through independent alarm and control switching
Support for modern digital systems via RS‑485 Modbus and dual remote outputs
Long‑lasting performance supported by robust construction and high‑grade corrosion protection

This reduces risk of overheating, supports better decision‑making and simplifies integration with asset‑monitoring platforms.

TECHNICAL

Features & Functionality

Functionality & Options

Improved Installation Design: Hinged or removable cover allows quick wiring and easy access in confined cabinet or bracket locations.
Multiple Mounting Styles: Choose from stainless‑steel anti‑vibration mounts, seismic mounts or universal mounting options.
Switching Adjustability: Standard 12°C differential or adjustable from 5°C to 25°C, depending on operational cooling requirements.
Enhanced Visual Indication: Updated max‑temperature pointer design reduces risk of accidental bending or damage during installation.
Digital Integration Ready: Fully supports modern digital transformers through Modbus communication and dual analog outputs.

Key Technical Specifications

Indication Accuracy: ±2% of full dial range
Temperature Range: 0°C to 150°C
Switching Accuracy: ±3% of full range
Remote Outputs: Pt100, 4–20 mA, dual 4–20 mA, or 4–20 mA + 0–5
Communication: RS‑485 Modbus
Dielectric Isolation: 2000 VAC (switches), 500 VAC (remote outputs)
Ingress Protection: IP66
Corrosion Rating: C5‑High (ISO 12944)
Operating Temperature: –40°C to 70°C (standard), –60°C to 70°C (polar)
Humidity: 95% non‑condensing at 95°C
Standards: IEC 60076‑22‑1
