Pressure Detection

Fast, Reliable Protection Against Sudden Pressure Events

Pressure Detection devices provide essential protection for transformers by detecting dangerous, fast‑rising internal pressure changes that can signal a developing fault. The Qualitrol 900/910 Rapid Pressure Rise Relays (RPRR) use patented mechanical bellows technology to identify sudden pressure events and trigger alarms or trips before severe tank damage occurs. With over 50 years of proven field performance and modern mounting options, these relays safeguard critical assets across a wide range of transformer designs.

Send an Enquiry

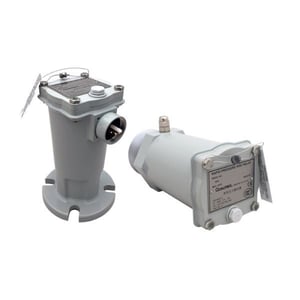

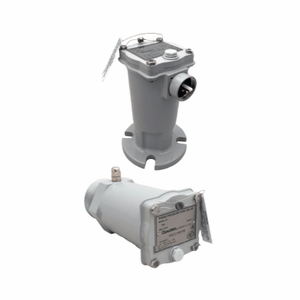

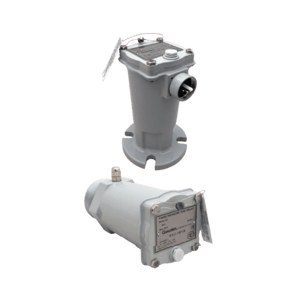

Qualitrol 900-910 Rapid Pressure Rise Relays (RPRR)

Application Overview

Rapid Pressure Rise Relays are used in transformer oil or gas spaces to detect internal faults that generate rapid pressure spikes. Unlike devices that respond to absolute pressure, these relays react only to the rate of pressure rise, ensuring accurate operation even under normal load, temperature variation or vibration. The 900 model is used in oil spaces, while the 910 model is calibrated for gas space applications. They are suitable for both new installations and retrofits across utility, industrial and generation environments.

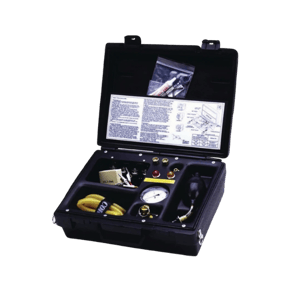

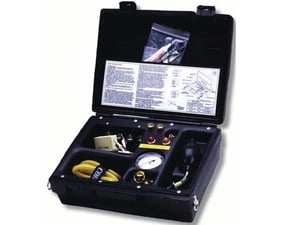

KIT‑013‑1 Field Test Kit

Contains pressure bulb, gauge, cable, tools, instructions and integrated test lights
Provides simple GO/NO‑GO confirmation while RPRR is mounted
Rugged case with shoulder strap for field use

What We Solve For

Transformers can experience internal faults that escalate within milliseconds, creating sudden pressure surges capable of rupturing tanks, endangering personnel and causing extensive outages. Pressure Detection devices address these risks by:

Detecting rapid pressure rise events early based on rate‑of‑change
Preventing nuisance trips from normal pressure fluctuations
Withstanding vacuum and overpressure without damage
Triggering alarms or trips that isolate the transformer before catastrophic failure

This results in safer operation, reduced asset loss and improved network reliability.

TECHNICAL

Features & Functionality

Functionality & Options

Oil or Gas Variants:
900 Series → Oil space
910 Series → Gas space
Switching:
Snap‑action SPDT switch used for alarm or trip circuits.
Mounting Options:
Flange mounting or 2½"-8 NPT threaded mounting; universal horizontal or vertical orientation.

Accessories:

Seal‑in relay (909‑300): Latches momentary events; VAC/VDC configurable; dual outputs; hazardous‑location certified.

Factory test fixture (FIX‑601): Supports calibration verification in manufacturing/repair shops.

KIT‑013‑1 Field Test Kit: Portable case with gauge, pressure bulb, power supply, test lights and instructions for simple field verification.

Environmental Protection:
IP65 enclosure; C5‑M corrosion‑resistant coating option for harsh conditions.
Electrical Connections:
QUALITROL, ANSI or military connectors; terminal box or test‑button option.

Key Technical Specifications

Mounting: Vertical or horizontal
Pressure Range: –14.7 to +20 PSIG (sensing bellows)
Materials: Die‑cast aluminum housing; stainless‑steel hardware; Viton O‑ring; nickel‑plated brass bleed valve
Switch Type: SPDT snap‑action
AC Rating: 10 A @ 120/240/480 VAC
DC Rating: 0.5 A @ 125 VDC; 0.25 A @ 250 VDC
Dielectric Strength: 1500 VAC for 1 minute
Temperature Range: –40°F to 180°F (standard); –67°F option
Ingress Protection: IP65
Vibration: Unaffected at 50/60 Hz or their multiples
