Partial Discharge Monitoring

Early Detection for Transformer Insulation Health

We supply Qualitrol’s industry‑proven Partial Discharge (PD) monitoring systems, designed to give power asset owners clear, real‑time visibility into transformer insulation health. PD activity is one of the earliest indicators of developing insulation faults, and early detection is essential to preventing costly failures. By providing proven UHF‑based monitoring equipment backed by Qualitrol’s global technology leadership, we help our customers strengthen operational reliability and support condition‑based maintenance strategies.

Send an Enquiry

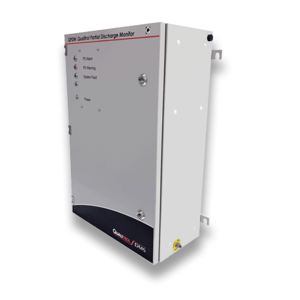

Qualitrol QPDM Transformer Partial Discharge Monitoring System, front-1

Application Overview

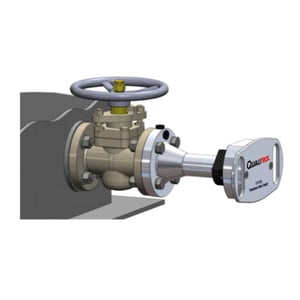

Qualitrol PD monitoring systems are engineered for continuous, online use in power transformers, GIS, and other high‑voltage assets. These systems can be integrated during transformer manufacture with internal UHF sensors or installed later using external window or drain‑valve sensors. As a distributor, we provide complete solutions—hardware, software and installation support—that enable utilities to detect PD activity, classify defect types and correlate behaviour with load or switching events. This helps organisations monitor insulation health without taking equipment offline.

What We Solve For

Insulation defects inside a transformer often develop gradually and may remain undetected until they lead to severe faults. These include voids, sharp‑edge discharges, surface discharge, loose insulation, corona formation and conductor‑to‑conductor activity. UHF PD monitoring identifies these issues early—even earlier than DGA or acoustic methods—helping asset owners prevent outages, reduce risk exposure and extend asset service life. As a solutions provider, we help customers deploy systems that overcome the limitations of conventional PD detection and ensure faults are detected with high sensitivity and strong noise immunity.

TECHNICAL

Features & Functionality

Functionality & Options

Scalable architecture: 1–6 UHF sensors per OCU; expandable up to 24 channels.

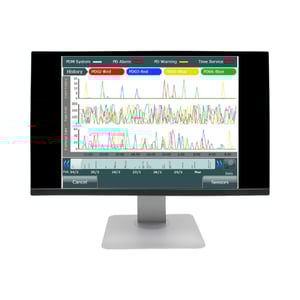

Real‑time PD trending: amplitude, discharge rate and correlation with load/OLTC operations.
PD localization: time‑difference‑of‑arrival techniques supported when multiple sensors are installed.
Remote monitoring and configuration: via secure Ethernet or fiber, with full software access.
Automatic self‑check: built‑in channel diagnostics and alarm logging.
Multiple communication protocols: IEC 61850, Modbus, SCADA relay outputs.
Long‑term storage: up to 5–10 years of PD history for trending and reporting.

Key Technical Specifications

UHF Sensor Inputs: 1–6 channels, expandable to 24.
UHF Frequency Range: 300–2100 MHz.
Sensitivity: −75 dBm to −80 dBm.
Dynamic Range: 70 dB.
Sampling Rate: 15,360 samples/s @ 60 Hz.
Noise Channel: Dedicated external noise‑antenna input.
Environmental Rating: IP66; operating range −25°C to +55°C; 5–95% humidity.
Communications: Ethernet (RJ45/fiber), IEC 61850, Modbus.
Data Storage: Solid‑state drive supporting multi‑year retention.

EXPERIENCE

Our Projects featuring Insulect Transformers

Explore our project highlights to see where Insulect Transformers are making an impact.
For tailored advice on whether this solution suits your network, please connect with our team here.

See All Projects

Start Reading

Advanced Transformer Bushing Monitoring: Preventing Failures Through Real-Time Insights

Start Reading

Hour-by-Hour Monitoring: Detecting a Developing Transformer Fault with the Serveron TM8

ADVANTAGES

Why Choose Insulect for
Partial Discharge Monitoring

We provide access to proven UHF systems backed by expert local support, ensuring customers receive dependable equipment and ongoing assistance.

Access to Industry‑Proven
UHF Technology

We supply Qualitrol’s field‑tested UHF PD systems, trusted for more than two decades in utilities worldwide. These solutions provide superior sensitivity and interference immunity, making them ideal for early fault detection and continuous monitoring.

Flexible, Scalable Installations
for Any Transformer

Whether integrating sensors during transformer manufacture or retrofitting existing assets, we offer installation‑ready sensor options and fully scalable architectures. This allows customers to deploy monitoring at the level that matches their operational risk.

Dedicated Local Support
and Expertise

We assist with product selection, installation coordination, configuration, alarm setup and ongoing troubleshooting. Where needed, we also work with Qualitrol’s PD specialists to support advanced diagnostic analysis, ensuring customers get the most value from their monitoring systems.
