FCAS Generation performance monitoring

Compliant, Accurate Monitoring for FCAS Conformance

Frequency Control Ancillary Services (FCAS) are essential for maintaining power system stability across the National Electricity Market. To ensure secure operation and supply quality, AEMO requires generators to demonstrate conformance through precise monitoring of frequency and generation data.

Insulect offers a trusted FCAS conformance monitoring solution, built on the modular Qualitrol IDM+ hardware and Autopoll software, delivering accurate, efficient, and standards-compliant data capture and reporting.

Send an Enquiry

Generator & Power Station Monitoring

Monitor generator behaviour in real time for internal events, frequency response, and conformance reporting. Ideal for both traditional power stations and renewable generation sites needing modular, scalable monitoring.

Embedded Generation Compliance

Support compliance of rooftop solar, battery storage, and DERs engaged in frequency response. Qualitrol IDM+ with Autopoll software provides granular performance data to demonstrate FCAS delivery.

Power Generation & Industrial Grid Stability

Deliver continuous visibility into frequency regulation and system disturbances across transmission assets or large energy users. Use high-speed data collection and intelligent analysis to maintain reliability and optimise network performance.

TECHNICAL

Features & Functionality

Precision Monitoring HardwareThe Qualitrol IDM+ delivers highly accurate, high-speed data acquisition for both power and frequency, capturing simultaneous fault current and frequency readings in real time. Its modular design supports scalable monitoring across multiple generator assets and connection points.

AEMO-Compliant Conformance RecordingPurpose-built for FCAS requirements, the system combines high-speed hardware and Autopoll software to record, store and retrieve performance data. It supports DDR-T and DDR-C compliance with polling rates up to 50 Hz.

insulect-about-energy-networks-asset-management 800x467

Proven in the Field

Insulect FCAS solutions are in active use across Australia and New Zealand in utility, renewable and industrial networks. Our locally supported systems provide the visibility and assurance required to maximise generator performance and grid participation.

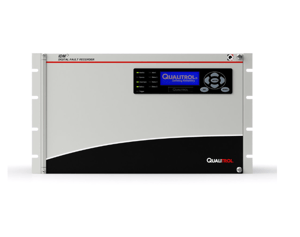

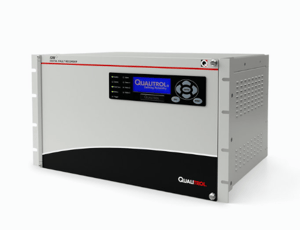

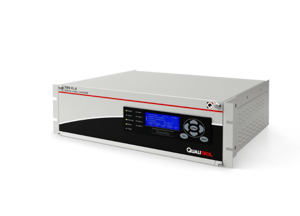

Qualitrol IDM+ Hardware

High Accuracy: Intrinsic active power uncertainty < 0.04%; frequency uncertainty ~0.00023%.
Flexible Sampling: Supports up to 512 samples per cycle (DFR) and 100 Hz (DDR).
Fast Response: Meets FCAS requirements for fast raise/lower (6s) and regulating services.
High Resolution: Active power resolution of 0.00000146% and frequency resolution of 0.001 Hz.

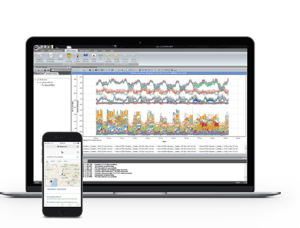

Autopoll Software

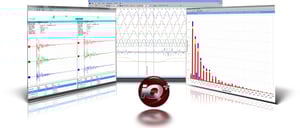

Standalone Solution: No dependency on iQ+ software.
High-Speed Polling: Up to 50 Hz (5 devices) and 1 Hz (unlimited devices).
Auto File Generation: COMTRADE and CSV output for triggered and continuous recording.
Support for DDR-T & DDR-C: Ensures compliance with FCAS data categories.

ADVANTAGES

Why Choose Insulect for FCAS Solutions

Insulect’s FCAS solution is not only compliant with the latest AEMO standards, but it is also deployed and trusted by utilities and generators across Australia, New Zealand and globally. We combine advanced monitoring hardware with simplified software and extensive engineering support to help you meet obligations, reduce compliance risk, and enhance network resilience.

Proven in the Field

Operational across diverse generation, transmission, and industrial sites in Australia and beyond.

Ready for Renewables

Designed to address the unique challenges posed by renewable energy sources in FCAS delivery.

Ongoing Support

Benefit from system design, configuration, training, and lifecycle services from our expert Australian team.

IMPLEMENTATION

Services & Support

Insulect offers comprehensive services and support for the products we manufacture and specialise in, enhancing value for local utilities, major energy users, equipment manufacturers, and service operators.

LOCAL TECHNICAL TEAM

Our local technical team provides exceptional support and expertise, ensuring quick response times and personalised service to tackle any challenges that may arise during project execution.

ENGINEERING DESIGN

Our team utilises advanced technology and industry knowledge to develop innovative and efficient high voltage switchgear solutions, customised to fit the unique requirements of each project.

PROCUREMENT & LOGISTICS

We facilitate smooth procurement and logistics processes by sourcing from trusted, proven partners and coordinating timely deliveries, ensuring projects remain on schedule and within budget.

TESTING & COMMISSIONING

Professional testing and commissioning support ensures that every high-voltage switchgear system functions safely and reliably, adhering to all regulatory standards and client expectations.

TURNKEY PROJECT DELIVERY

We are able to oversee every phase from concept to completion, providing comprehensive solutions that simplify complex projects and ensure successful outcomes.

FACTORY VISITS

We facilitate client visits to our local manufacturing sites here in Australia, as well as overseas, for initial inspection as well as factory acceptance testing.
