Switchpanel Type X

Reliable insulation for switchboard applications

Switchpanel Type X is a non‑conductive, fibre‑reinforced insulating board designed specifically for electrical switchboards. Manufactured with thermosetting phenolic resin, it combines strong electrical insulation with excellent mechanical performance and proven durability in demanding electrical environments.

Send an Enquiry

Application Overview

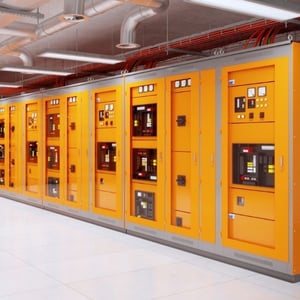

Switchpanel Type X is used across a wide range of electrical infrastructure where safe electrical isolation and physical robustness are essential. It is commonly specified for switchboards, busbar supports and meter boards in commercial and industrial installations.

What We Solve For

Electrical panels require insulation materials that resist tracking, moisture and mechanical impact while remaining easy to fabricate. Switchpanel Type X delivers a safe, durable and workable solution that helps protect equipment, reduce maintenance risk and ensure long‑term performance in switchboard assemblies.

TECHNICAL

Features & Functionality

Functionality & Options

Non‑conductive electrical insulation panels
Suitable for structural and protective applications
Supplied as full sheets or cut‑to‑size components
Short‑run or volume machining and fabrication available
Thickness range to suit different load and insulation requirements

Key Technical Specifications

Fibre reinforced plastic with thermosetting phenolic resin
Electrical insulation resistance: >10 MΩ
Moisture absorption: <1%
High impact resistance (CSIRO Ice Cannon tested)
Excellent steam resistance (no delamination after testing)
Standard sheet size: 1220 × 2440 mm
Thickness range: 3.0 mm to 25.0 mm
Colour: Black

EXPERIENCE

Our Projects Featuring Insulect Industrial Materials

Explore our project highlights to see where Insulect industrial materials are making an impact.
For tailored advice on whether this solution suits your network, please connect with our team here.

See All Projects

Start Reading

Fortescue Aldoga, New 275kV Substation Switchgear

Start Reading

Fortescue Future Industries 275 kV Substation Project

ADVANTAGES

Why Choose Insulect for Switchpanel Type X

Switchpanel Type X is a proven insulating board solution for switchboards and electrical panels, combining dependable electrical insulation with mechanical durability and fabrication flexibility. Designed to withstand moisture, impact and electrical stress, it provides confidence and long‑term performance in demanding electrical environments.

Designed for Electrical Safety

Switchpanel Type X is purpose‑built for electrical insulation, helping mitigate tracking, moisture ingress and insulation failure in switchboards.

Robust & Durable

Its high mechanical strength, impact resistance and wear performance make it suitable for demanding installations and long service life.

Flexible & Proven

Available in a wide thickness range and easy to machine, Switchpanel Type X offers design flexibility backed by proven industry performance.
