Liquid Level Measurement

Accurate, Reliable Monitoring for Transformer Oil Levels

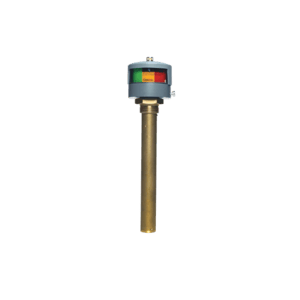

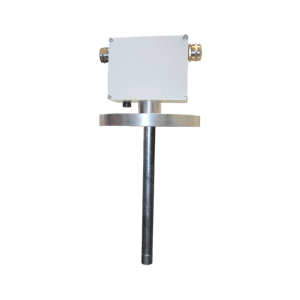

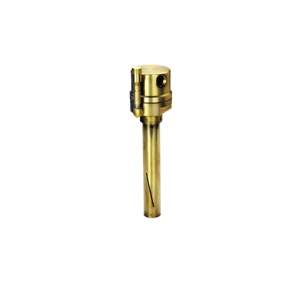

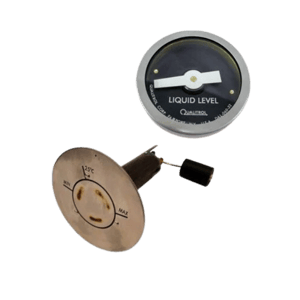

Qualitrol’s Liquid Level Indicators are designed to provide continuous, dependable measurement of oil level inside transformer main tanks, conservator tanks and load tap changer compartments. With rugged construction, flexible mounting options and precise display mechanisms, these indicators support safe and reliable operation across a wide range of transformer applications.

Send an Enquiry

Application Overview

Our indicators are used for monitoring liquid levels within transformer conservators, main tanks and LTC compartments, as well as other vessels where maintaining appropriate fluid volume is critical. They help operators ensure proper oil levels, prevent overheating or insulation issues, and support alarms or limit functions through built‑in switching options.

What We Solve For

Transformer performance and longevity rely heavily on maintaining the correct oil level. Our Liquid Level Indicators address common challenges—such as inaccurate readings, limited visibility, environmental exposure and monitoring difficulty by providing:

Clear, amplified visual indication
Rugged, corrosion‑resistant construction
Multiple switching options for alarms and level limits

These features support better asset protection, reduced maintenance downtime and improved system reliability.

TECHNICAL

Features & Functionality

Functionality & Options

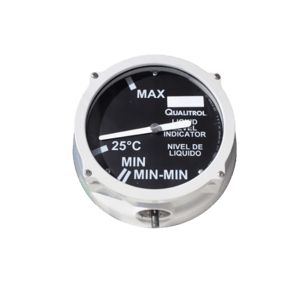

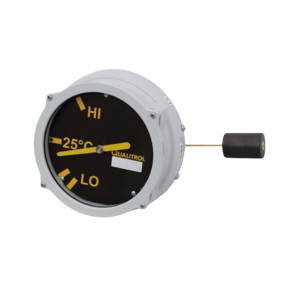

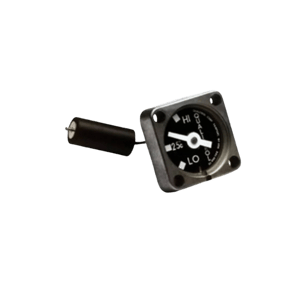

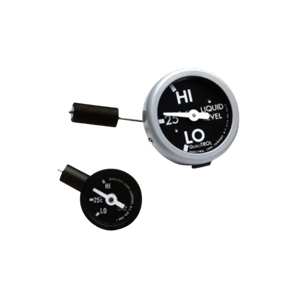

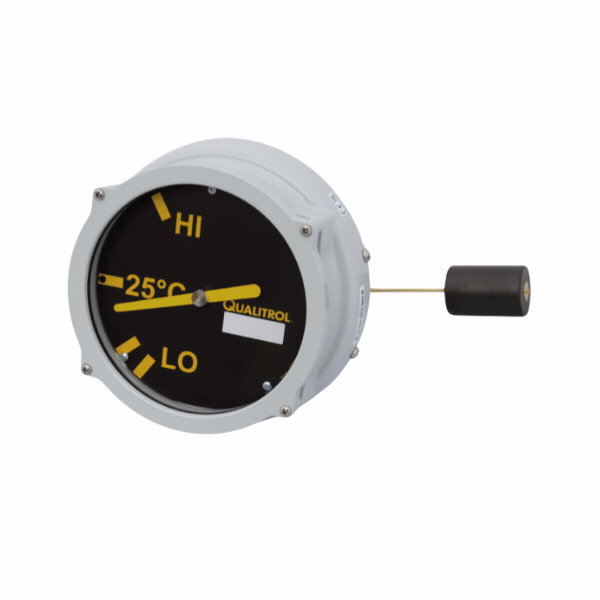

Multiple Float Mechanisms: Choose between gear‑driven (042/045) or lever‑driven (032) floats depending on space and visibility requirements.

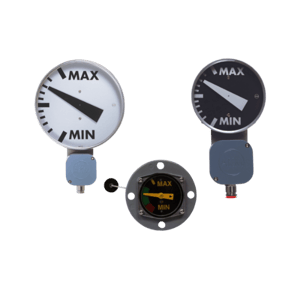

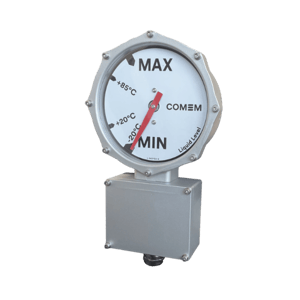

Dial Options: Industry‑standard or custom‑engineered dial markings available.
Electrical Configurations: Up to 3–4 switches depending on model; SPDT or SPST switching; Wide array of electrical connectors including quick‑connect, weatherproof, ANSI, military‑style and terminal box options;
Lens Choices: Standard UV‑stabilised polycarbonate, glass or tempered glass.

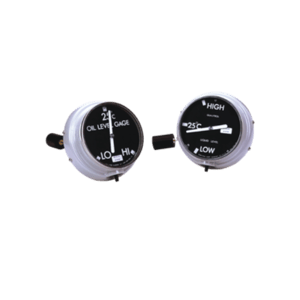

Hazardous Location Approval: 045 models are UL listed for Class 1, Div 2 environments.

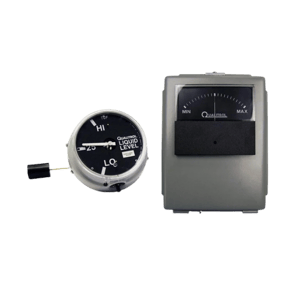

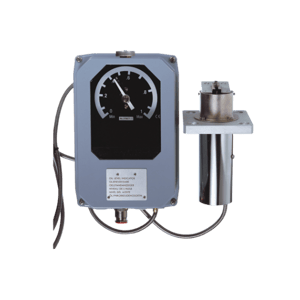

SCADA Integration: Optional 039 remote enclosure provides 4–20 mA or 0–1 mA outputs for automated oil‑level monitoring.

Key Technical Specifications

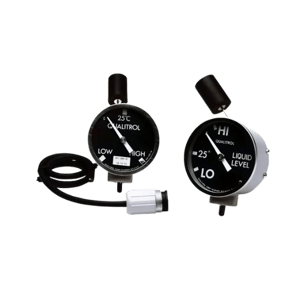

Mounting: Flange mount (032/042/045) or M50 thread (44712/34725)
Dial Diameter: 5.5" (140 mm), 5.9" (150 mm) or 9.8" (250 mm) depending on model
Float Mechanisms: Gear‑driven or lever‑driven options
Switches: Up to 3 (032/042/045) / up to 4 (44712/34725)
AC Switch Rating: Up to 10A @ 125/250/480 VAC
DC Switch Rating: Up to 0.5A @ 125 VDC and 0.25A @ 250 VDC (varies by model)
Output Signal (optional): 4–20 mA or 0–1 mA
Dielectric Strength: 1,500–2,000 VAC depending on model
