Safegrid Intelligent Grid System
Intelligent Grid Monitoring that Enables Proactive Utilities
Safegrid provides intelligent, real‑time grid monitoring that allows utilities to locate faults instantly, predict failures before they happen, and prevent outages altogether.

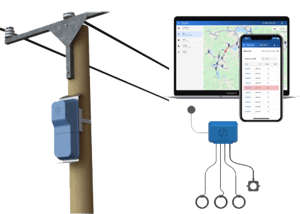

Through a combination of non‑intrusive sensors and powerful cloud analytics, Safegrid gives full visibility across overhead lines and underground cables—helping grid operators move from reactive fault response to proactive grid management. The result is reduced outages, lower operational expenditure, increased safety, and higher network reliability.
Product Range Overview
%20(3).jpg?width=300&name=Images%20(600%20x%20600%20px)%20(3).jpg)
For:
Control rooms, network operations, and field teams
What it does:

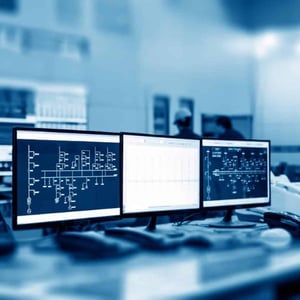

GridGuardian® is Safegrid’s cloud‑based intelligence platform that transforms high‑frequency sensor data into clear, actionable insights.
Key features & functions:
- GIS‑based, map‑centric grid visibility
- Real‑time fault alerts via web, email, or SMS
- Smart Fault Location™ and Smart Fault Prediction™ tools
- Event classification by type and severity
- Heatmaps for predictive maintenance and asset health
- Secure, scalable hosting with global availability
-1.jpg?width=300&name=Images%20(600%20x%20600%20px)-1.jpg)
For:
Overhead line monitoring (distribution and transmission)
What it does:

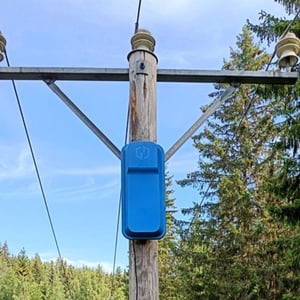

Grayhawk® sensors wirelessly measure current and high‑frequency transients on overhead lines without contacting conductors.
Key features & functions:
- Non‑intrusive, non‑contact, hot‑install capable
- Captures both 50/60 Hz currents and fast transients up to MHz range
- GPS‑synchronised for travelling‑wave fault location
- Supports accurate detection of earth faults, short circuits, and high‑impedance faults
- Ideal for fast deployment across wide areas
%20(1)-1.jpg?width=300&name=Images%20(600%20x%20600%20px)%20(1)-1.jpg)
For:
Cable networks, substations, and mixed grids
What it does:

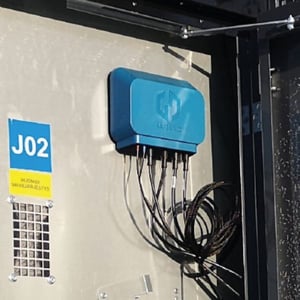

Grayfox® sensors use Rogowski coils to monitor underground and cable‑connected assets with high accuracy.
Key features & functions:
- Non‑intrusive current measurement
- Live‑line installation with no service interruption
- Installed at substations, kiosks, and riser poles
- Detects faults, transients, and partial discharges
- Enables early identification of degrading cable assets
%20(2).jpg?width=300&name=Images%20(600%20x%20600%20px)%20(2).jpg)
For:
Outage management and predictive maintenance
What they do:

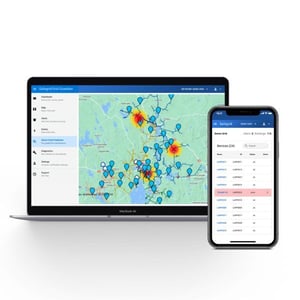

These software applications use high‑frequency data and advanced analytics to both locate faults instantly and predict failures before outages occur.
Key features & functions:
- Fault location accuracy typically within ±100 metres
- Detection of faults other systems cannot see (e.g. high‑impedance faults)
- Partial discharge monitoring for insulators, joints, switchgear, and transformers
- Predictive alerts enable planned maintenance instead of emergency response
- Reduced SAIDI, SAIFI, and operational costs
