iQ+ Master Station Software

Select between Multiple Maps

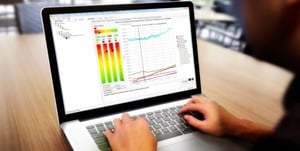

Ultra-Fast Display of Results

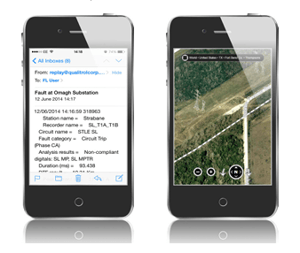

Email Notifications

iQ+ is a centralized Master Station application purpose-built for grid monitoring across substations.

iQ+ enables seamless oversight of all Qualitrol grid-focused monitoring devices—including legacy and modern hardware such as IDM+, IDM, the DFR family, FL-8, FL-1, TWS and DSFL fault locators, as well as INFORMA PMD-A and QWAVE power quality monitors. By consolidating fault, disturbance, and power quality data into a single platform, iQ+ empowers grid operators to accelerate fault analysis, enhance system reliability, and streamline event response across the transmission and distribution network.

Complete Fleet Management Package

  • Class leading products supported (and more)
  • IDM+ Multifunction power system monitor (with options for power quality, PMU and TWS fault location)
  • TWS FL-8 and TWS FL-1 Traveling wave fault locators
  • INFORMA PMD-A Performance measuring and monitoring device
  • TWS MkVI Traveling wave fault locator

Scalable Client-Server Solution

  • Scalable solution - iQ can be installed as single user / unit to multiple users / complete fleet wide deployment

  • Secure client-server architecture enables multiple simultaneous users to access devices and information

  • Single server database to back up, improving data security / integrity

  • As fleet size increases - Communication Managers can be added for faster data acquisition

  • Multiple protocols / carriers - utilize existing communications infrastructure

Automatic Data Collection, Storage and Backup

  • Qualitrol intelligent autocomms broadcasts a signal to iQ which in turn polls the unit, downloads the data and performs the user defined / configured scheduled actions

  • Built in scheduled data backup facility

  • Manual or scheduled automatic data export to COMTRADE / PQDI

Flexible Data Management and Display

  • Powerful data visualisation tools

  • Quickly navigate to units

  • Multiple interlinked topology design - view as devices / voltage levels / asset type / station name or geography

  • Configure favourite units / views to quickly access information

TECHNICAL

Features & Functionality

Functionality & Options

  • Automatically polls connected devices, downloads event data, and stores it in a centralized database.

  • Performs automated analysis of digital fault records to identify fault type, fault location, and abnormal system behavior.

  • Provides visualization and analysis of power quality events, harmonic content, energy recordings, and histograms.

  • Displays traveling-wave fault waveforms and calculates distance-to-fault for transmission lines.

Key Technical Specifications

  • Digital fault recorders (DFR): IDM+, IDM-E, BEN 6000

  • TWS fault locators (TWS FL): TWS FL-8 / FL-1

  • Power quality monitors (PQ): INFORMA PMD-A / Fluke 1760

  • Legacy units: IDM, QWAVE family, Hathaway DFR, BEN 5000 and TWS / DSFL range

Downloads

EXPERIENCE

Projects Featuring Networks

Explore project highlights to see where Networks are making an impact.
For tailored advice on whether this solution suits your network, please connect with our team here.

Where you'll find our Network products

You'll find Insulect-supplied and installed Networks products across Australia.

ADVANTAGES

Why Choose iQ + Software for Networks

iQ+ Software helps utilities improve network reliability and operational efficiency by combining centralized monitoring, advanced analytics, and scalable system management in one integrated platform.

Centralized Network Monitoring
 iQ+ provides a single platform to collect, manage, and visualize data from multiple monitoring devices across the power network, enabling efficient system-wide oversight.
Advanced Fault and Power Quality Analysis
The platform automatically analyzes fault records and power quality data, helping engineers quickly identify issues and determine root causes.
Scalable and Secure Architecture
Its client-server design allows deployment from small installations to large utility fleets, with secure multi-user access and centralized data management.
IMPLEMENTATION

Services & Support

Insulect offers comprehensive services and support for the products we specialise in, enhancing value for local utilities, major energy users, equipment manufacturers, and service operators.

LOCAL TECHNICAL TEAM

Our local technical team provides exceptional support and expertise, ensuring quick response times and personalised service to tackle any challenges that may arise during project execution.


ENGINEERING EXPERTISE

Through Qualitrol, our team utilises advanced technology and industry knowledge to assist customers.



PROCUREMENT & LOGISTICS

We facilitate smooth procurement and logistics processes by sourcing from trusted, proven partners and coordinating timely deliveries, ensuring projects remain on schedule and within budget.



TESTING & COMMISSIONING
Professional testing and commissioning support ensure that every system functions safely and reliably, adhering to all regulatory standards and client expectations.

TURNKEY PROJECT DELIVERY

We are able to oversee every phase from concept to completion, providing comprehensive solutions that simplify complex projects and ensure successful outcomes.



FAQs

What is iQ+ Master Station Software used for?

iQ+ is a centralised monitoring platform that collects, manages and visualises data from multiple grid monitoring devices across substations and power networks. It brings fault, disturbance and power quality data into one platform to support faster event analysis and network oversight.

What monitoring devices can iQ+ connect to?

iQ+ supports a range of Qualitrol monitoring devices, including IDM+, IDM, DFR, TWS fault locators, FL-8, FL-1 and power quality monitoring devices. It also supports several legacy devices, allowing existing monitoring equipment to be incorporated into the centralised system.

Can iQ+ automatically collect and store monitoring data?

Yes. iQ+ can automatically poll connected devices, download event data and store it in a central database. Scheduled backups and automatic or manual exports to formats such as COMTRADE and PQDI are also supported.

How does iQ+ help analyse network faults and disturbances?

iQ+ provides waveform and phasor views, harmonic analysis and interactive event records. It can also automatically analyse digital fault records to identify fault type, fault location and abnormal system behaviour, while displaying travelling-wave fault data and distance-to-fault calculations.

Can iQ+ be scaled for large utility networks?

Yes. iQ+ uses a scalable client-server architecture that can support a single user or unit through to multiple users and fleet-wide deployments. Communication Managers can also be added as the number of monitored devices grows, while multiple users can access devices and information through the secure system.
