Fibre Optic Temperature Monitoring

Complete End‑to‑End System
Optional Environmental Control

Real-Time Insight Into Transformer Hot Spot Performance

The Qualitrol T/Guard 408 and 408XT Fiber Optic Winding Temperature Monitor delivers direct, real-time measurement of transformer winding hot spot temperatures. Using proven GaAs fiber optic sensing technology, it provides precise, drift-free temperature data that helps operators maximize transformer performance, protect insulation life, and confidently manage dynamic loading conditions.

Send an Enquiry
QUALITROL-T-GUARD-408-408XT-Fiber-optic-temperature-monitoring-system

Fiber Optic Winding Temperature Monitoring You Can Trust

Rugged multi-channel fiber optic real-time hot spot monitoring system for dry-type and oil-filled transformers.

  • Provide essential data during transformer heat run

  • Maximize cooling efficiency with accurate hot spot temperature measurement

  • Optimize loading dynamically without compromising transformer life

  • Complements predictive hot-spot algorithm simulations

  • Compatible with Qualitrol Q-Link™ for Apple® iPhone®, OptiLink and OptiLink-II

  • Available with 4, 6, 8, 10, 12 or 16 channels

What We Solve For

Traditional transformer temperature measurements rely on indirect methods that can lag behind real conditions, especially during rapid load changes or emergency overloads. The T/Guard 408 solves this by providing:

  • True winding hot spot temperatures rather than estimated values

  • Near-instantaneous detection of overloads and thermal stress

  • Long-term measurement stability without sensor drift or recalibration

  • Confidence to increase loading without compromising transformer life

This results in improved asset utilization, enhanced reliability, and reduced risk of unexpected failures.

TECHNICAL

Features & Functionality

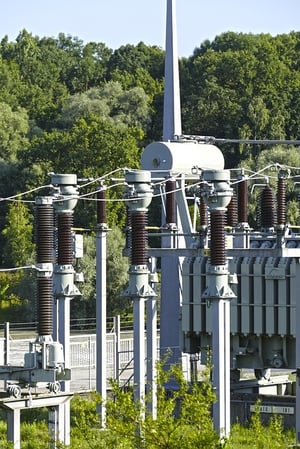

blackline-transformer-1235973_640
Direct Fiber Optic Hot Spot Measurement

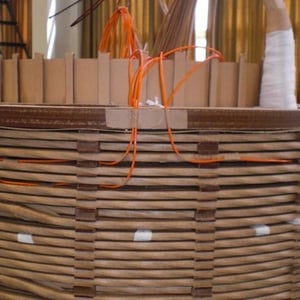

The system measures actual winding temperatures using GaAs-based fiber optic probes embedded directly in critical locations. This provides a realistic and immediate view of transformer thermal behavior, far more accurate than indirect measurements or thermal algorithms alone.

planet_fox-glass-fiber-5223804_640
High-Speed Multi-Channel Monitoring

With support for 4 to 16 fiber optic channels, the T/Guard 408 scans all probes with a 250 ms switching rate per channel, ensuring rapid detection of peak temperatures during load changes or emergency conditions.

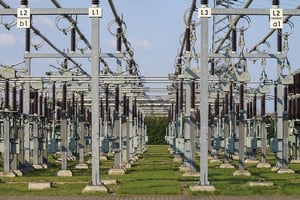

photomat-industry-3196696_640
Long-Term Stability with Zero Drift

Solid-state semiconductor sensing technology ensures absolute temperature accuracy over the full transformer lifespan. Unlike fluorescent decay systems, the sensors do not fade or drift, eliminating recalibration requirements.

Images (3)
Flexible Communication and Smart Grid Integration

The 408XT model is Ethernet-enabled and supports modern substation protocols, including IEC 61850. Data can be accessed locally or remotely via web browser, serial communication, or SCADA systems.

Functionality & Options

  • Available in 4, 6, 8, 10, 12, 14, or 16 channel configurations

  • Built-in 2 GB data logging memory (optional 4 GB upgrade)

  • User-adjustable data logging rates from 1 second to 1 hour

  • Eight programmable Form-C relays plus dedicated system fault relay
    4–20 mA analog outputs for each channel (up to 16 outputs)
    Serial (RS-485) and Ethernet communication options

  • Web-based configuration and monitoring on 408XT models

  • Optional NEMA 4 enclosure for outdoor installations

  • Compatible with Qualitrol Q-Link™ software for visualization and reporting

Key Technical Specifications

  • Measurement resolution: 0.1°C (0.1°F)

  • Accuracy: ±1.0°C from –20°C to 150°C

  • Temperature range: –50°C to +200°C system measurement

  • Sampling speed: 250 ms per channel

  • Light source MTBF: >300 years equivalent continuous operation

  • Power consumption: 18 W (all relays enabled)

  • Supply voltage: 95–240 VAC or 135–240 VDC

  • Operating temperature: –40°C to +72°C

  • Probe technology: All-dielectric GaAs fiber optic sensors
