High-Voltage
Substation Insulators

Transmission
Distribution

Reliable Substation Insulators for High-Voltage Performance and Safety

Insulect’s insulators provide critical mechanical support and dielectric separation in high-voltage substations and overhead networks. Engineered for Australian conditions and compliant with IEC/AS standards, our range offers durability, flexibility, and proven performance in even the harshest operating environments.



Send an Enquiry
ChatGPT Image Jun 4, 2025, 03_42_09 PM

What's in the Range

Engineered for Australian conditions and compliant with IEC/AS standards, our range offers durability, flexibility, and proven performance even in the harshest operating environments.

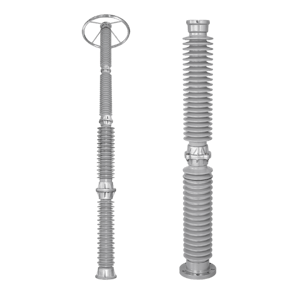

Station Post Insulators (Porcelain)
Station Post Insulators (Porcelain, Solid‑Core)

For substations and switchyards with voltage capabilities (12-550kV) with high cantilever strength and long creepage paths.

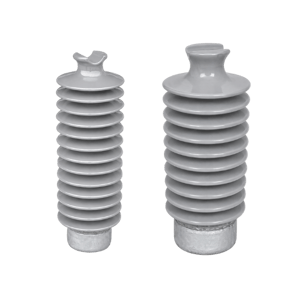

Line Post Insulators (Porcelain & Polymeric)
Line Post Insulators (Polymeric and Porcelain)

For overhead line applications (12-145 kV) with specified SML and impulse withstand levels.

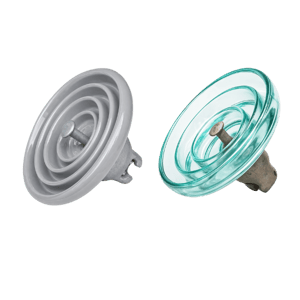

Disc (Suspension) Insulators (Porcelain & Glass)
Disc (Suspension) Insulators (Porcelain & Glass)

Modular stringing for transmission lines with 70–160 kN electro‑mechanical strength options and standard ball & socket or tongue & clevis hardware.

Made for Demanding Environments

Insulects' range of insulators are field-proven across transmission, distribution, renewables, and industrial energy networks. Designed to withstand electrical, mechanical, and environmental stress, they’re ideal for use in high-contamination zones, coastal sites, and areas subject to thermal cycling. Whether supporting busbars, isolators, or overhead lines, our insulators provide long-term, low-maintenance reliability.

What We Solve For

Substation insulators must remain mechanically stable and electrically reliable in extreme environments. Insulect’s range addresses risks like electrical tracking, flashover, and brittle fracture, delivering long-life performance in zones prone to salt, dust, UV, and thermal variation. Our local knowledge and technical support ensure the right product fit, first time.

TECHNICAL

Key Features

Robust Materials
High Voltage Reliability

For substations and switchyards with voltage capabilities from 12 kV up to 550 kV and above, with high cantilever strength and long creepage paths.

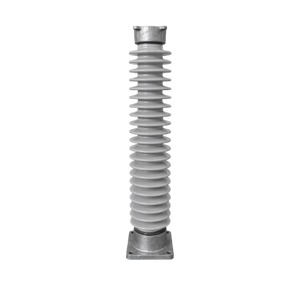

station post insulator
Robust Materials

Available in non-porous electrical porcelain (solid core posts) and polymeric designs for line applications; porcelain units supplied in Munsell Grey glaze unless specified.

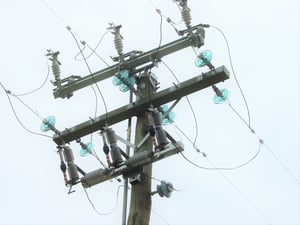

Optimised Creepage Performance
Optimised Creepage Performance

Multiple pollution levels (up to Level IV/Very Heavy) with extended creepage distances to reduce flashover in harsh environments.

Proven Mechanical Strength Expanders
Proven Mechanical Strength Expanders

Ratings from 70–160 kN (disc units), high cantilever station posts, and defined SML for polymeric line posts ensure reliable hardware interfaces.

Features & Functionality

  • Electrical Insulation & Support: Solid‑core station posts insulate and mechanically support busbars, switches, and apparatus; line posts and discs support and insulate conductors on overhead lines.
  • Voltage Coverage: Offerings cover LV/MV to 550 kV across porcelain and polymeric families (application‑dependent).
  • End‑Fittings / Interfaces: Ball & socket, tongue & clevis, clevis & tongue, and tie‑top variants are available to match line hardware standards.
  • Pollution & Creepage Options: Multiple creepage selections to match site pollution severity classes.
  • Glaze/Color: Munsell Grey standard; special glaze on request.

Standards & Testing

  • IEC & Australian Standards compliance across dimensional, electrical, and mechanical requirements; products are batch tested to Australian Standards and type tested at NATA‑equivalent labs.
  • Capability up to 800 kV is indicated for porcelain portfolios from listed manufacturers.
EXPERIENCE

Our Projects featuring Insulect Insulators

Explore our project highlights to see where the Insulect range of Insulators are making an impact.
For tailored advice on whether this solution suits your network, please connect with our team here.

See All Projects
Start Reading

Sebastopol Solar Farm
Start Reading

Northern Goldfields 66kV Solar Project

Where you'll find our Substations

You'll find Insulect-supplied and installed Substations across Australia and New Zealand.

ADVANTAGES

Why Choose Insulect for Substation Insulators

Insulect’s range of insulators are engineered to perform—mechanically, electrically, and environmentally. Backed by decades of experience and local support, our solutions are trusted by utilities and contractors across Australia. Whether standard or custom-built, every insulator delivers the strength

Engineered for Local Conditions
Designed, tested, and supported in Australia, our insulators are built to withstand the realities of local operating environments, including high contamination, coastal exposure, and extreme temperatures. Each unit is specified to meet local network standards and delivers long-term reliability under demanding field conditions.
Flexible Configurations
Insulect’s insulator range covers 12 kV to 550 kV, with options in porcelain, polymer, and composite materials. Available in various lengths, creepage distances, and mounting styles, our insulators are configurable to suit diverse mechanical loads, insulation requirements, and structural layouts—ensuring a seamless fit for both new installations and retrofit applications.
End-to-End Support
Insulect delivers more than just insulators—we provide full lifecycle support, from product selection and technical advice to installation guidance, retrofit matching, and replacement planning. With local expertise and responsive service, we help ensure your assets perform reliably from specification through to service life completion.
IMPLEMENTATION

Services & Support

Insulect offers comprehensive services and support for the products we manufacture and specialise in, enhancing value for local utilities, major energy users, equipment manufacturers, and service operators.

LOCAL TECHNICAL TEAM

Our local technical team provides exceptional support and expertise, ensuring quick response times and personalised service to tackle any challenges that may arise during project execution.


ENGINEERING DESIGN

Our team utilises advanced technology and industry knowledge to develop innovative and efficient high-voltage switchgear solutions, customised to fit the unique requirements of each project.



PROCUREMENT & LOGISTICS

We facilitate smooth procurement and logistics processes by sourcing from trusted, proven partners and coordinating timely deliveries, ensuring projects remain on schedule and within budget.


TESTING & COMMISSIONING
Professional testing and commissioning support ensures that every high-voltage switchgear system functions safely and reliably, adhering to all regulatory standards and client expectations.

TURNKEY PROJECT DELIVERY

We are able to oversee every phase from concept to completion, providing comprehensive solutions that simplify complex projects and ensure successful outcomes.


FACTORY VISITS
We facilitate client visits to our local manufacturing sites here in Australia, as well as overseas, for initial inspection as well as factory acceptance testing.

FROM THE BLOG

Featured Articles

Ready to Strengthen Your Network?

We built for reliability, safety, and compliance — our products are designed to perform in the toughest environments. Talk to our team to ensure you're specifying the right product for your application.
Speak with our Team
