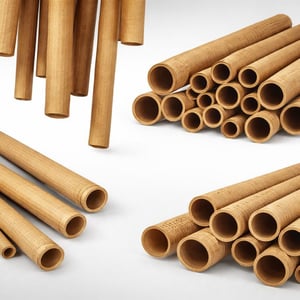

Crepe Paper Tubes

Crepe Paper Tubes for Reliable Transformer Insulation

Crepe Paper Tubes are designed to provide dependable electrical insulation in transformer assemblies and other high‑voltage environments. Manufactured from high‑quality insulation crepe paper and engineered for compatibility with liquid dielectrics, these tubes combine flexibility, thermal stability, and long‑term reliability for critical insulation applications.

Send an Enquiry

Application Overview

Crepe paper tubes are primarily used as electrical insulation components in transformers, where they serve as insulating sleeves for conductors and diverters. Their flexibility and dielectric performance make them suitable for:

Distribution transformers
Power transformers
Traction transformers
High‑voltage diverter insulation

The tubes are optimized for oil‑filled environments and demanding operating conditions commonly found in transformer construction and refurbishment.

What We Solve For

In high‑voltage transformer designs, maintaining reliable insulation around conductors and diverters is critical to preventing electrical breakdown and extending equipment life. Crepe paper tubes solve this by providing:

Consistent electrical insulation in tight or irregular geometries
Materials compatible with transformer oils and liquid dielectrics
Thermal performance aligned with Class A insulation requirements
A standardized, IEC‑compliant insulation solution for manufacturers and service providers

This helps reduce failure risk, simplify installation, and ensure compliance with international insulation standards.

TECHNICAL

Features & Functionality

Functionality & Options

Designed for high‑voltage insulation of diverters
Suitable for oil‑filled transformer environments
Available in multiple inner diameters and wall thicknesses
Standard tube lengths typically around 1.8 m
Flexible design simplifies installation over conductors and components
Thermally upgraded variants available for selected sizes

Key Technical Specifications

Insulation class: Class A (105 °C)
Material: Insulation crepe paper P 5238
Standard: IEC‑60554
Crepe orientation: Transverse to tube length
Outer layer: Bonded end finish
Dielectric compatibility: Compatible with liquid dielectrics
Application areas: Distribution, power, and traction transformers

EXPERIENCE

Our Projects Featuring Insulect Industrial Materials

Explore our project highlights to see where Insulect industrial materials are making an impact.
For tailored advice on whether this solution suits your network, please connect with our team here.

See All Projects

Start Reading

Fortescue Aldoga, New 275kV Substation Switchgear

Start Reading

Fortescue Future Industries 275 kV Substation Project

ADVANTAGES

Why Choose Our Crepe Paper Tubes

Engineered to meet the demanding requirements of transformer insulation, these crepe paper tubes & tapes combine proven materials, international standards compliance, and practical design versatility. They offer manufacturers and service providers a dependable, oil‑compatible insulation solution that supports long‑term electrical performance across a wide range of transformer applications.

Designed for Transformer‑Grade Reliability

These tubes & tapes are specifically engineered for transformer insulation applications, ensuring compatibility with oil‑filled systems and long‑term dielectric performance under electrical and thermal stress.

Compliance With International Standards

Manufactured in accordance with IEC‑60554 and VDE 0530 Part 1, the product supports regulatory compliance and simplifies qualification in both new transformer builds and refurbishment projects.

Wide Size Range for Design Flexibility

With a broad selection of inner diameters, wall thicknesses, and thermally upgraded options, these crepe paper tubes & tapes allow designers and maintenance teams to select the optimal insulation solution for each specific application.
