Pressure Relief & Control

Advanced Overpressure Protection for Critical Transformer Assets

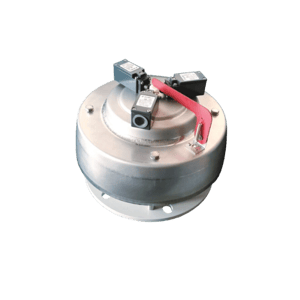

Qualitrol’s Pressure Relief Devices (PRDs) are specifically designed to provide rapid mechanical pressure relief for oil‑filled transformers, load tap changers and other fluid‑filled equipment. When sudden internal pressure spikes occur, these devices open instantly to safely vent hot oil and gas, protect the tank, safeguard personnel, and minimise environmental impact. Once pressure normalises, the devices automatically reseal to maintain system integrity and reduce downtime.

Send an Enquiry

Application Overview

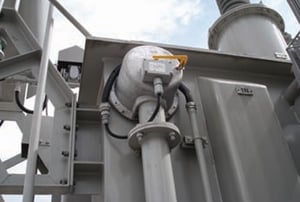

Qualitrol PRDs are used across the full spectrum of transformer installations—from network transformers (500 kVA and above), large distribution and medium power units, through to large power transformers and load tap changers. They offer precise, reliable pressure relief for equipment operating in utility, heavy‑industry, mobile, and railway environments. Their directed‑flow designs and optional piping systems help ensure hot oil is safely redirected away from personnel and critical components.

What We Solve For

Utilities and heavy‑industry operators face operational, environmental and safety risks due to sudden internal transformer faults that cause pressure spikes. Qualitrol’s PRDs solve these challenges by offering:

Improved personnel safety through controlled directional discharge
Reduced environmental impact by enabling discharge to containment
Reduced downtime thanks to reliable automatic resealing
Extended asset protection via fast‑acting mechanical design

These solutions address safety compliance, environmental obligations and asset‑life optimisation.

TECHNICAL

Features & Functionality

Functionality & Options

Patented gasket and valve designs ensure quick actuation and consistent resealing after pressure subsides, maintaining internal fluid containment.

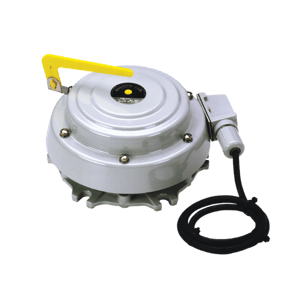

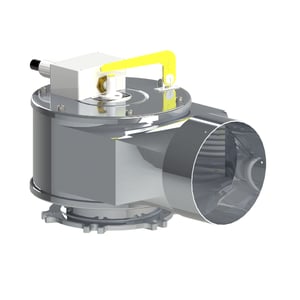

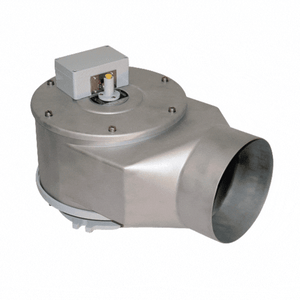

Both LPRD and XPRD models can be paired with aluminum or PVC piping, protective screens, large‑radius elbows, or compression couplings for safer and cleaner discharge control.

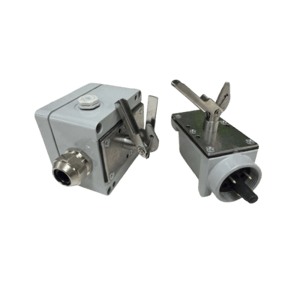

Optional semaphores, indicator pins and alarm switches provide clear notification of pressure‑relief events—locally or through SCADA/monitoring systems.

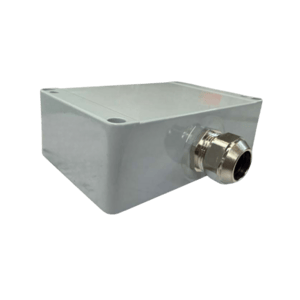

SPDT and DPDT configurations, high‑DC switches, low‑current gold‑contact types and multiple connector styles support any alarm scheme.

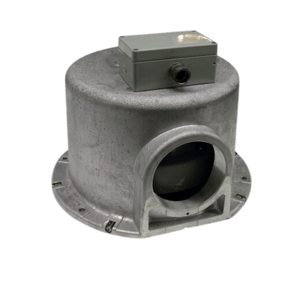

Devices can be top‑mounted horizontally (recommended) or side‑mounted vertically; shields rotate 360° for alignment with containment piping.
Gas bleed systems ensure trapped gases can be safely purged when PRDs are used below the oil level.

Key Technical Specifications

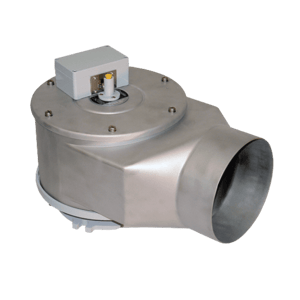

Flow Rate: Up to 12,600 SCFM at 15 PSI (XPRD)
Operating Temperatures:

Ambient: –40°C to +80°COil

Temperature (LPRD): –20°C to +100°C

Materials: Stainless steel valves & hardware; cast or die‑cast aluminum flanges and rings; nitrile, Viton or silicone gaskets; zinc‑plated or stainless‑steel springs
Environmental Testing:

XPRD: 1000 hours salt‑spray exposure

LPRD: 200–1000 hours salt‑spray testing with no structural degradation
Electrical Connections: Multiple circular connectors, flying leads or terminal boxes; dielectric strength 2000–2500 VAC
Recommended Tank Opening (XPRD): 171.5 mm
