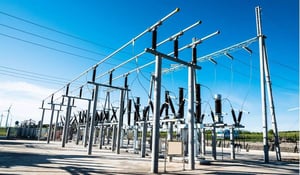

Modern substations are designed to operate reliably under demanding conditions, but increasing power loads, compact equipment designs, and harsh environmental conditions are placing greater demands on electrical insulation systems. In high-temperature substation environments, insulation materials must do more than provide electrical separation. They must maintain dielectric strength, mechanical stability, and long-term reliability under continuous thermal stress.
Selecting the right insulation material depends on several factors, including operating temperature, voltage level, mechanical loading, moisture exposure, fire performance, and the specific application within the substation. Insulect supplies a range of high-performance insulation materials suitable for demanding electrical applications across Australia and New Zealand.
Key Requirements for High-Temperature Electrical Insulation
High-temperature substation insulation materials should provide:
- Thermal stability: The ability to maintain electrical and mechanical properties at elevated temperatures.
- High dielectric strength: Reliable insulation performance under electrical stress.
- Mechanical strength: Resistance to cracking, deformation, and vibration.
- Resistance to ageing: Long service life under continuous thermal and electrical loading.
- Arc and tracking resistance: Protection against surface discharge and electrical faults.
While traditional insulation materials remain widely used in transformer and switchgear applications, advanced composite materials are increasingly preferred where higher temperature performance and durability are required.
Silicone Mica HP5 High-Temperature Insulation Laminate – Excellent Thermal Performance
For applications exposed to extreme heat, Silicone Mica HP5 High-Temperature Insulation Laminate provides one of the highest levels of thermal performance within Insulect’s insulation portfolio.
Mica-based insulation systems are valued for their excellent dielectric properties, heat resistance, and ability to maintain performance in demanding electrical environments. Silicone mica laminates are suitable for applications where insulation must withstand elevated temperatures, electrical stress, and long-term ageing.
Typical applications include:
- High-temperature electrical barriers
- Busbar insulation components
- Electrical supports
- Heat-exposed switchgear components
G11 Epoxy Glass Laminate – High-Temperature Structural Insulation
G11 Epoxy Glass Laminate is a high-performance composite material designed for applications requiring greater thermal capability than standard epoxy glass laminates.
Manufactured from woven glass reinforcement bonded with epoxy resin, G11 provides excellent mechanical strength, dimensional stability, and electrical insulation performance at elevated temperatures. It is widely used for structural insulation components where reliability is critical.
Typical applications include:
- Switchgear insulation components
- Electrical supports
- Terminal boards
- High-temperature insulating barriers
Durostone® SG200 Polyester Glass Laminate – Excellent Mechanical and Electrical Performance
Durostone® SG200 Polyester Glass Laminate combines glass reinforcement with polyester resin to provide excellent mechanical strength, electrical insulation properties, and dimensional stability.
This material is suitable for substation environments where insulation components must withstand mechanical stress, temperature variation, and continuous electrical operation.
Common applications include:
- Switchgear components
- Insulating supports
- Electrical mounting structures
- Protective barriers
Durostone® UTR GPO-3 Polyester Glass – Reliable Switchgear Insulation
Durostone® UTR GPO-3 Polyester Glass is a flame-retardant polyester glass composite designed for electrical insulation applications requiring strong mechanical performance and resistance to electrical tracking.
Its combination of thermal performance, arc resistance, and dimensional stability makes it suitable for a wide range of medium-voltage switchgear and substation applications.
Typical uses include:
- Busbar supports
- Phase barriers
- Insulating plates
- Switchgear assemblies
Durastone UPM S1 Polyester Glass – Durable Electrical Insulation Components
Durastone UPM S1 Polyester Glass offers very good electrical and mechanical properties for structural insulation applications.
Its reinforced composite construction provides reliable performance where components require strength, rigidity, and resistance to environmental conditions.
Applications include:
- Electrical supports
- Insulating components
- Switchgear assemblies
- Substation structural parts
G10 Epoxy Glass Laminate – Versatile Electrical Insulation
G10 Epoxy Glass Laminate is a widely used electrical insulation material known for its combination of dielectric strength, mechanical strength, and dimensional stability.
While G10 is not designed for the highest temperature applications compared with G11, it remains a reliable choice for many substation components operating within its temperature range.
Typical applications include:
- Insulation barriers
- Terminal components
- Electrical supports
- General switchgear insulation parts
FR4 Epoxy Glass Laminate – Flame-Retardant Insulation Solution
FR4 Epoxy Glass Laminate provides good electrical insulation performance with flame-retardant properties, making it suitable for many electrical panel and control applications.
Although FR4 is generally selected for applications with moderate thermal requirements rather than extreme temperatures, it remains widely used where electrical insulation and fire performance are important considerations.
Applications include:
- Control panels
- Electrical barriers
- Insulating components
- Low-to-medium temperature electrical assemblies
Choosing the Right Material for Substation Applications
No single insulation material is suitable for every substation environment. The correct choice depends on the operating conditions and the role of the insulation component.
For extreme temperature applications, materials such as Silicone Mica HP5 High-Temperature Insulation Laminate and G11 Epoxy Glass Laminate provide enhanced thermal capability. For switchgear and structural insulation applications, Durostone® SG200 Polyester Glass, Durostone® UTR GPO-3 Polyester Glass, and Durastone UPM S1 Polyester Glass offer excellent mechanical and electrical performance.
Meanwhile, G10 and FR4 Epoxy Glass Laminates remain versatile solutions for general electrical insulation requirements where temperature demands are less severe.
By selecting insulation materials based on thermal performance, electrical requirements, and mechanical conditions, operators can improve substation reliability, reduce maintenance risks, and extend equipment service life.
Choose the Right High-Temperature Insulation Solution with Insulect
Insulect provides a comprehensive range of electrical insulation materials designed for demanding power infrastructure applications across Australia and New Zealand. From high-temperature mica laminates and epoxy glass composites to advanced polyester glass insulation systems, Insulect supports engineers, utilities, and manufacturers in selecting the right materials for reliable substation performance. Contact Insulect today to discuss your insulation requirements and find the right solution for your high-temperature electrical applications.
