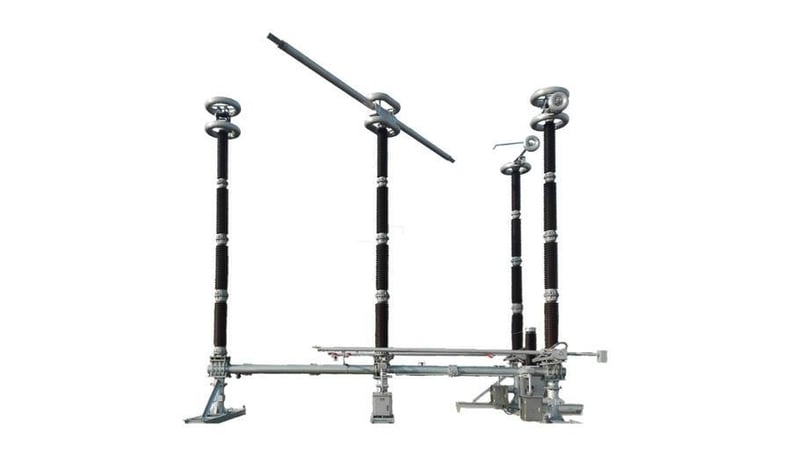

Outdoor high voltage disconnectors significantly impact industrial network safety by providing crucial isolation for maintenance, protecting personnel, and contributing to overall system reliability and operational flexibility. However, their outdoor placement and the high voltages involved also introduce specific safety considerations and potential risks.
Key impacts on industrial network safety include:
Safe Isolation for Maintenance
The primary function of high voltage disconnectors is to create a visible, physical gap in an electrical circuit, completely isolating a section of the network from the power flow. This ensures that equipment can be de-energized and worked on safely, preventing accidental energization and protecting maintenance personnel from electrical shock and injury. This visible confirmation is vital for ensuring a safe working environment.
Personnel Protection
By creating a tangible barrier, disconnectors mitigate the risks associated with high voltage equipment for individuals working in the electrical infrastructure. They are often used in conjunction with earthing switches, which connect the isolated section to the ground, further negating residual charges and adding another layer of protection against electrical shocks.
Enhanced System Reliability
Disconnectors allow technicians to safely perform maintenance or isolate faulty equipment without shutting down the entire system, thereby reducing outage times. This is particularly critical for industries dependent on continuous power supply, as outages can be very costly. They also enable targeted isolation, facilitating efficient maintenance and repairs while maintaining operational integrity and resilience of the power grid.
Operational Flexibility
By allowing specific sections to be isolated, disconnectors empower operators to make adjustments, reroute power, or perform necessary changes without causing system-wide disruptions.
Overvoltage Protection Support
In high-voltage systems, disconnectors can help prevent the spread of overvoltage by isolating faulty sections of the network, thereby protecting other parts of the system from damage.
Despite these benefits, there are safety concerns specifically for outdoor high voltage disconnectors:
Environmental Impact and Wear
Outdoor disconnectors are exposed to severe environmental conditions, including extreme temperatures, moisture, and pollutants, which can lead to wear and potential failures over time. Long-term exposure to weather and large temperature differences can cause issues like high-voltage insulator breakage and damage to conductive parts due to poor connection or oxidation.
Operational Hazards
Misoperation, such as attempting to operate disconnectors under load, can result in serious arcing, which poses a significant threat to safe power supply and can endanger operators with arc burns or even direct short-circuit discharge, especially in outdoor settings where there may be no baffle protection.
Maintenance and Installation Quality
Improper maintenance and management account for a significant percentage of electrical system failures. Faults like operating mechanism jamming can occur due to twisting, incomplete closing, or improper installation and adjustment, leading to operational issues and potential safety risks. Regular inspection, operational testing, and electrical testing are crucial to ensure their proper functioning.
Need for Robust Design
Disconnectors must be robust and reliable, capable of withstanding environmental conditions and significant electrical loads to maintain a safe and efficient network. They need to meet specific insulation and spacing criteria to prevent arcing and electrical failures.
Enhance Network Safety with the Right HV Disconnector Solution
Outdoor high-voltage disconnectors play a vital role in providing visible isolation, supporting safe maintenance practices, and helping operators manage electrical risks across utility and industrial networks. Selecting the right disconnector for the application is essential to achieving reliable long-term performance and maintaining network safety.
Insulect supplies a comprehensive range of high-voltage disconnectors to the Australian and New Zealand markets, supporting utilities, renewable energy projects, industrial facilities, and infrastructure operators. With solutions designed for demanding outdoor environments, Insulect helps customers improve network safety, reliability, and operational efficiency.
Whether you're specifying equipment for a new installation, upgrading existing switchyard assets, or seeking technical guidance, contact Insulect to discuss the most suitable HV disconnector solution for your project.
