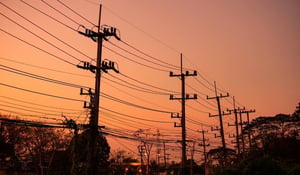

Electronic sectionalisers play a crucial role in reducing feeder outages on overhead distribution lines by working in conjunction with upstream reclosers or circuit breakers to swiftly isolate fault locations. These devices enhance grid reliability and minimize the impact of power interruptions.
Here’s a breakdown of how they achieve this:
-
Fault Detection and Coordination with Reclosers: Electronic sectionalisers are designed to detect abnormal conditions, such as overcurrents caused by faults, but they do not interrupt the fault current directly. Instead, they monitor the circuit and count the number of times an upstream recloser or circuit breaker operates to clear a fault.
-
Differentiating Fault Types: A significant majority (80-90%) of faults on overhead lines are temporary, caused by issues like tree branches brushing lines or lightning strikes. Reclosers are programmed to automatically re-energize the line multiple times after tripping to clear these temporary faults. During a temporary fault, the electronic sectionaliser recognizes the overcurrent but remains inactive, allowing the recloser to attempt to restore power without interruption to the entire circuit.
-
Isolation of Permanent Faults: If a fault is permanent and the upstream recloser opens the circuit a pre-set number of times without successfully clearing the fault, the electronic sectionaliser will then open automatically during a “dead time” (when the line is de-energized by the recloser). This action isolates the specific faulty section of the distribution line.
-
Minimizing Outage Scope: By isolating only the faulted section, electronic sectionalisers ensure that the healthy parts of the power network remain energized. This significantly reduces the number of customers affected by an outage, as power can be restored to unaffected areas more quickly.
-
Improved Restoration Time and Safety: Sectionalisers contribute to faster restoration times by pinpointing the fault location, making it easier for utility crews to identify and fix problems. They also reduce the need for manual intervention with high-voltage equipment during a fault, enhancing safety.
In essence, electronic sectionalisers act as intelligent isolating devices that work synergistically with reclosers to provide layered protection to the distribution system. They prevent widespread outages by containing faults to the smallest possible area, thereby enhancing the overall reliability and efficiency of the electrical grid.
Improve Network Reliability with Australian-Made Electronic Sectionalisers
As utilities continue to focus on improving network reliability and reducing customer outage durations, electronic sectionalisers play an increasingly important role in fault management on overhead distribution feeders. By automatically identifying and isolating faulted line sections, they help minimise the number of customers affected and speed up service restoration.

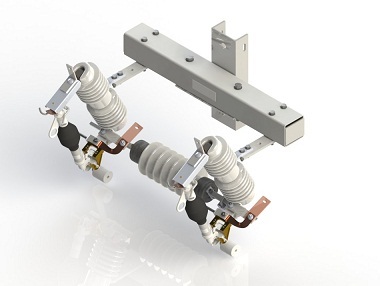

Insulect manufactures electronic sectionalisers in Australia, designed to provide dependable fault isolation and support modern distribution network performance requirements. With proven solutions for utility and industrial applications, Insulect's sectionalisers help operators improve feeder reliability while reducing maintenance and operational costs.
Whether you're planning a new feeder installation, upgrading existing protection schemes, or looking to improve network resilience, contact Insulect to discuss the right sectionalising solution for your application.
