Distribution Transformers with Natural and Synthetic Ester Fluids

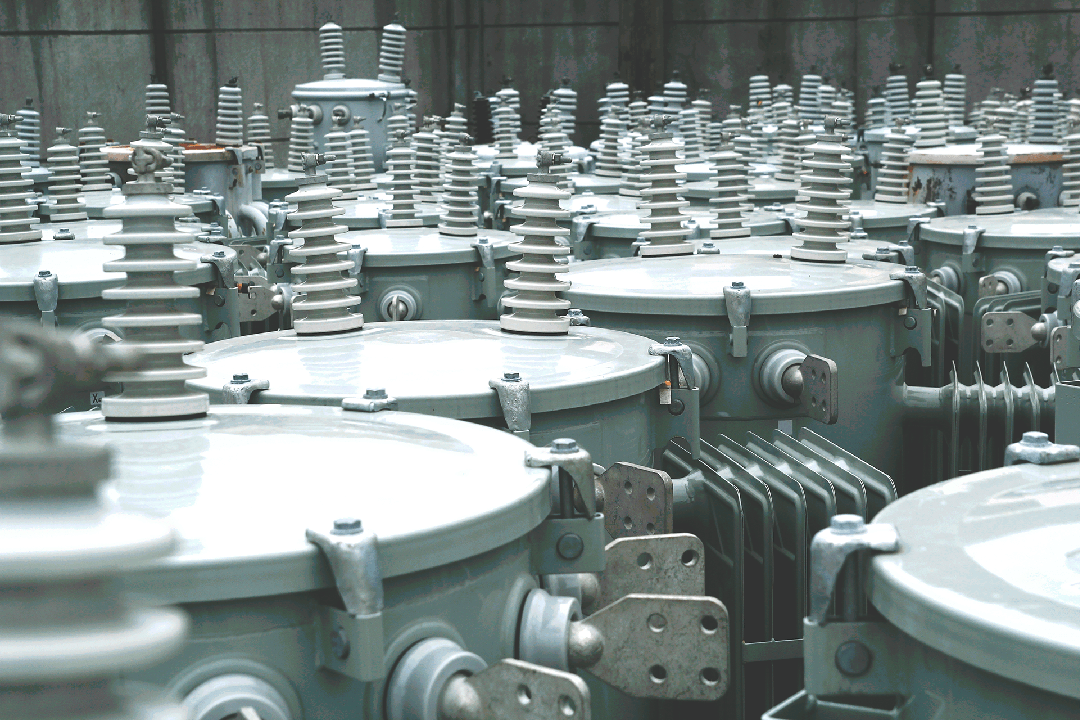

Distribution transformers are everywhere, quietly supplying power to homes, businesses, and public spaces every day. Because they are often installed close to where people live and work, the choice of transformer fluid plays a key role in safety, reliability, and environmental protection.

This is where natural and synthetic ester fluids, such as MIDEL eN 1204 and MIDEL 7131, are making a real difference.

Why Transformer Fluids Matter in Distribution Networks

Unlike large power transformers, distribution transformers are frequently located:

Inside buildings
Near residential areas
In public spaces such as shopping centres, schools, and offices

In these environments, fire safety is critical. At the same time, utilities and operators are under increasing pressure to reduce environmental impact and simplify maintenance.

Traditional mineral oil has served the industry for decades, but it comes with limitations—particularly in fire performance and environmental protection. Ester fluids offer a modern alternative that addresses these concerns.

Fire Safety Comes First

One of the biggest advantages of MIDEL ester fluids is their exceptional fire safety.

Both MIDEL eN 1204 and MIDEL 7131 are classified as K-class fluids, meaning they have a high fire point above 300°C (IEC 61039). This significantly reduces the risk of ignition compared to mineral oil.

They also carry trusted industry approvals:

FM Approved less-flammable transformer fluid
UL classified dielectric medium (EOUV)

These certifications mean transformers using MIDEL fluids can often be installed indoors with reduced fire risk, which may also lower the need for complex fire protection systems.

Natural vs Synthetic Ester: Choosing the Right Fit

MIDEL offers both natural and synthetic ester options, allowing engineers to choose the best fit for each application.

MIDEL eN 1204 (Natural Ester)

Derived from renewable vegetable sources
Ideal for sealed (non-breathing) transformers
Strong environmental credentials
Biodegradable and non-toxic

midel 7131

MIDEL 7131 (Synthetic Ester)

Suitable for both sealed and breathing transformers
Excellent oxidation stability
Performs well in a wider range of operating conditions
Proven across many demanding applications

This flexibility means transformer designers can balance performance, environment, and operational needs more effectively.

Additional Benefits

Ester fluids bring a number of practical advantages that support long-term operation:

Greater Moisture Tolerance

MIDEL fluids can absorb more moisture than mineral oil without compromising insulation performance. This helps protect transformer paper insulation and can extend asset life.

Lower Maintenance Needs

Thanks to their stability and robustness, ester fluids often result in reduced maintenance requirements over time.

Potential Cost Savings

Using MIDEL fluids can:

Reduce or eliminate the need for fire suppression systems
Lower requirements for secondary containment
Simplify installation in indoor or confined spaces

Strong Environmental Performance

Both fluids are:

Readily biodegradable (OECD 301)
Fully biodegradable (IEC 61039)
Non-toxic

This is particularly important in urban areas or environmentally sensitive locations where spills must be carefully managed.

Low Temperature Performance

Low pour points allow these fluids to perform well even in colder climates, ensuring reliable operation across different regions.

A Practical Choice for Modern Networks

As energy networks evolve, distribution transformers must meet higher expectations for safety, sustainability, and reliability.

MIDEL ester fluids offer a well-balanced solution, helping operators:

Improve fire safety in populated areas
Reduce environmental impact
Simplify installation and maintenance
Extend transformer lifespan

Choosing the right transformer fluid is no longer just a technical decision—it’s a way to manage risk, improve safety, and support long-term performance.

Natural and synthetic ester fluids provide a practical and proven alternative to traditional options, especially in distribution networks where people, infrastructure, and the environment are closely connected.

As more utilities adopt these solutions, ester fluids are becoming an important part of building safer and more resilient power systems.

For more information or to discuss your project, contact Insulect, your local MIDEL ester fluid supplier in Australia, today.
