What happens to the performance of Midel fluids when they absorb moisture?

ANSWER:

Ester fluids can absorb large amounts of moisture with no reduction of breakdown voltage.

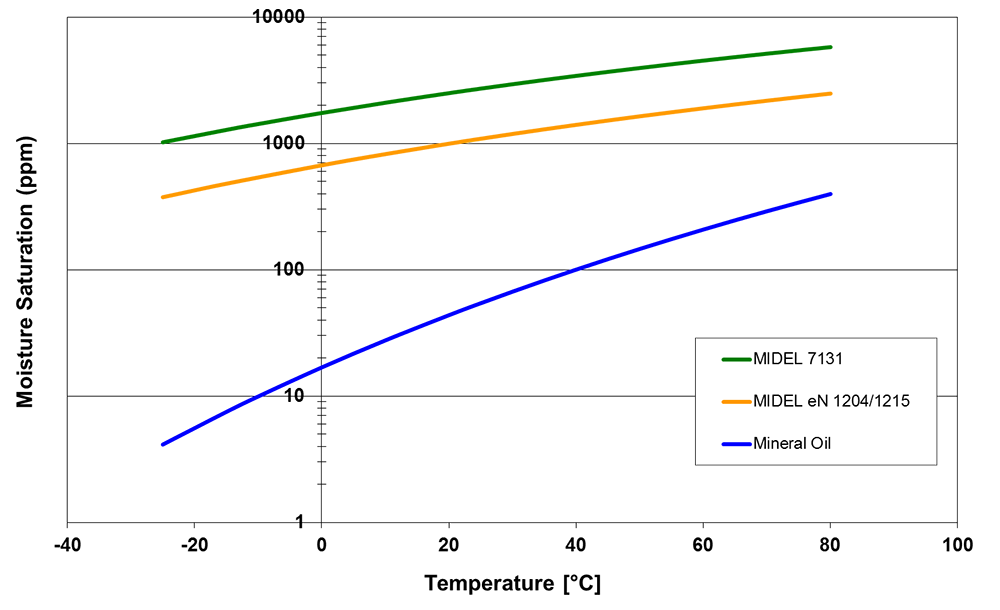

They have a higher saturation point – and are more tolerant of water – than mineral oil. A comparison of the saturation curves of different fluids is shown below.

So, what happens in the transformer?

Water moves between the solid insulation and fluid trying to reach equilibrium in terms of relative saturation. Paper produces water as a by-product of thermal ageing, which acts as a catalyst for continued degradation.

Because mineral oil has a very low saturation limit the water stays in the paper.

Since ester fluids have much higher saturation limits some water can migrate into the fluid, having a positive effect on paper ageing rates.

What does this mean for transformer life?

Laboratory experiments have demonstrated that cellulose materials immersed in ester-based liquids will age more slowly those immersed in mineral oil.

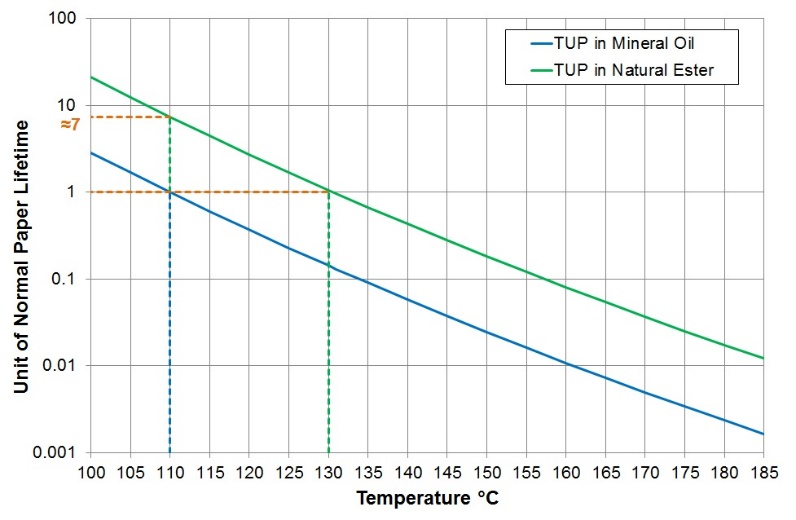

Information on the enhanced ageing of cellulose can be found in IEEE C57.154 and IEC 60076-14, including an ageing curve which indicates that ester transformers can run hotter than mineral oil transformers for the same lifetime.

Alternatively, when run at standard temperature, a transformer can have a longer lifetime with MIDEL ester fluid.
