How Transformer Breathers Help Prevent Catastrophic Failures

Transformer breathers are critical components in preventing catastrophic failures in oil-immersed power transformers because they act as the first line of defence against moisture contamination and atmospheric impurities.

Without a properly functioning breather, standard operational cycles can introduce conditions that compromise the integrity of the transformer.

The primary reasons transformer breathers are vital for averting catastrophic failures include:

1. Managing Thermal “Breathing” and Moisture Ingress

As a transformer operates, it undergoes continuous load and temperature fluctuations. The internal insulating oil expands when heated (forcing air out, or exhaling) and contracts when cooled (drawing ambient air in, or inhaling).

• The Hazard: Ambient air contains humidity. If raw, humid air is drawn directly into the conservator tank, moisture mixes with the air above the oil or dissolves into the oil itself.
• The Breather’s Role: Traditional breathers are packed with a desiccant (such as silica gel) that strips moisture from incoming air. By ensuring that only dry air enters the system, the breather prevents the steady accumulation of moisture within the transformer.

2. Preserving the Dielectric Strength of Insulating Oil

Transformer oil serves a dual purpose: cooling the core/windings and providing high-voltage electrical insulation.

• The Hazard: Moisture is a highly detrimental contaminant to dielectric fluids. Even trace amounts of moisture (measured in parts per million, or ppm) drastically lower the oil’s dielectric strength (its ability to withstand electrical stress without breaking down).
• The Consequence: Degraded dielectric strength drastically increases the risk of internal partial discharges, tracking, flashovers, and catastrophic short circuits.

3. Protecting Solid (Cellulose) Insulation

Inside a transformer, the copper or aluminium windings are wrapped in high-grade cellulose paper and pressboard insulation.

• The Hazard: Moisture has a chemical affinity for cellulose, migrating out of the oil and settling into the paper over time.
• The Consequence: Wet paper insulation degrades and ages exponentially faster through a process called hydrolysis. It loses its mechanical and tensile strength, making it vulnerable to physical shifting during high fault currents. Furthermore, wet insulation breaks down into acids and sludge, accelerating a destructive feedback loop of internal overheating and ultimate winding failure.

Keep Your Transformers Dry and Reliable

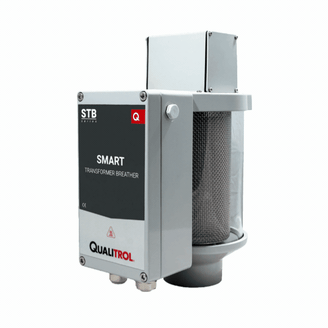

Effective moisture control is essential for protecting transformer insulation and extending asset life. At Insulect, we offer smart and standard d ehydrating breathers from reputable brands such as Qualitrol and COMEM, providing universal, maintenance-free solutions designed to keep transformers dry, protected and operating reliably.Talk to our team to find the right breather solution for your transformer.
