As electricity distribution networks become increasingly automated, utilities are looking for reliable switching solutions that can improve operational efficiency, minimise outages, and support smart grid initiatives. Medium-voltage (MV) air load break switches (LBS) play a critical role in achieving these objectives by providing safe load switching, isolation, and remote network control.
Why Air Load Break Switches Are Important
Air load break switches are designed to safely interrupt and isolate electrical circuits under normal load conditions. Using air as the primary insulating and arc-quenching medium, these switches provide a dependable and cost-effective solution for overhead distribution networks.
Typically, available in voltage ratings from 12 kV to 36 kV and continuous current ratings up to 1200 A, air load break switches are widely used on pole-mounted distribution feeders, substations, and transformer connections.
Key Features for Automated Networks
When selecting an air load break switch for an automated pole-mounted network, utilities should look beyond the basic switching function and consider features that support remote operation and network visibility.
Motorised Operation
Motorised load break switches enable operators to open and close circuits remotely, eliminating the need for field crews to manually operate equipment. This significantly reduces restoration times during planned maintenance and network events.
SCADA Integration
Modern load break switches can be integrated with Supervisory Control and Data Acquisition (SCADA) systems, allowing utilities to monitor switch status and control operations from a central control room. This capability is essential for advanced distribution automation and smart grid applications.
Robust Outdoor Construction
Pole-mounted switches must withstand harsh environmental conditions, including UV exposure, temperature extremes, salt contamination, dust, and storms. High-quality air load break switches are engineered for long-term reliability in these demanding environments.
Flexible Mounting Options
Distribution networks often require different installation arrangements. Suitable switches should offer multiple mounting configurations, including pole-top, mid-pole, vertical, underhung, and crossarm mounting options to accommodate varying network designs.
Air Load Break Switches vs Reclosers
Although air load break switches and reclosers are often used within the same network, they perform different functions.
Air load break switches are designed for load switching and isolation under normal operating conditions. They provide a simple and economical solution for sectionalising feeders and enabling remote network control.
Reclosers, on the other hand, are intelligent protection devices that can detect fault currents, automatically interrupt faults, and attempt to restore supply after temporary disturbances. While reclosers offer greater functionality, they also involve higher complexity and cost.
For many automated feeder applications, a motorised air load break switch provides an effective balance between functionality and investment, particularly where fault interruption is not required.
What Is the Best Choice for Automated Pole-Mounted Networks?
For utilities seeking automation capability, the most suitable option is an air-insulated load break switch equipped with motorised operation and SCADA compatibility.
These switches provide:
- Reliable load switching and circuit isolation
- Remote operation from control centres
- Integration with distribution automation systems
- Reduced field maintenance requirements
- Improved outage response and network reliability
- Flexible installation options for overhead distribution networks
By combining proven switching performance with modern automation capabilities, motorised air load break switches help utilities create safer, more efficient, and more resilient power distribution systems.
.png?width=507&height=507&name=Untitled%20design%20(10).png)
Need Advice on Air Load Break Switches?

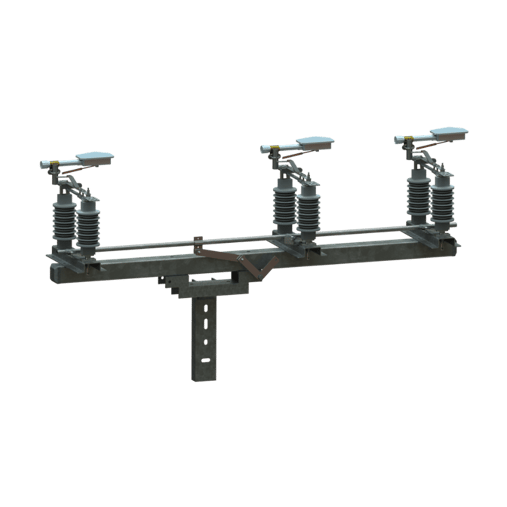

Insulect supplies a comprehensive range of medium-voltage overhead air load break switches for utility and industrial distribution networks across Australia and New Zealand. Available in 12 kV, 24 kV, and 36 kV ratings, our solutions support pole-top, mid-pole, vertical, and underhung mounting configurations, with manual or motorised operation and SCADA-ready options available. Contact the Insulect team today to discuss your network requirements and find the right air load break switch solution for your automation project.
