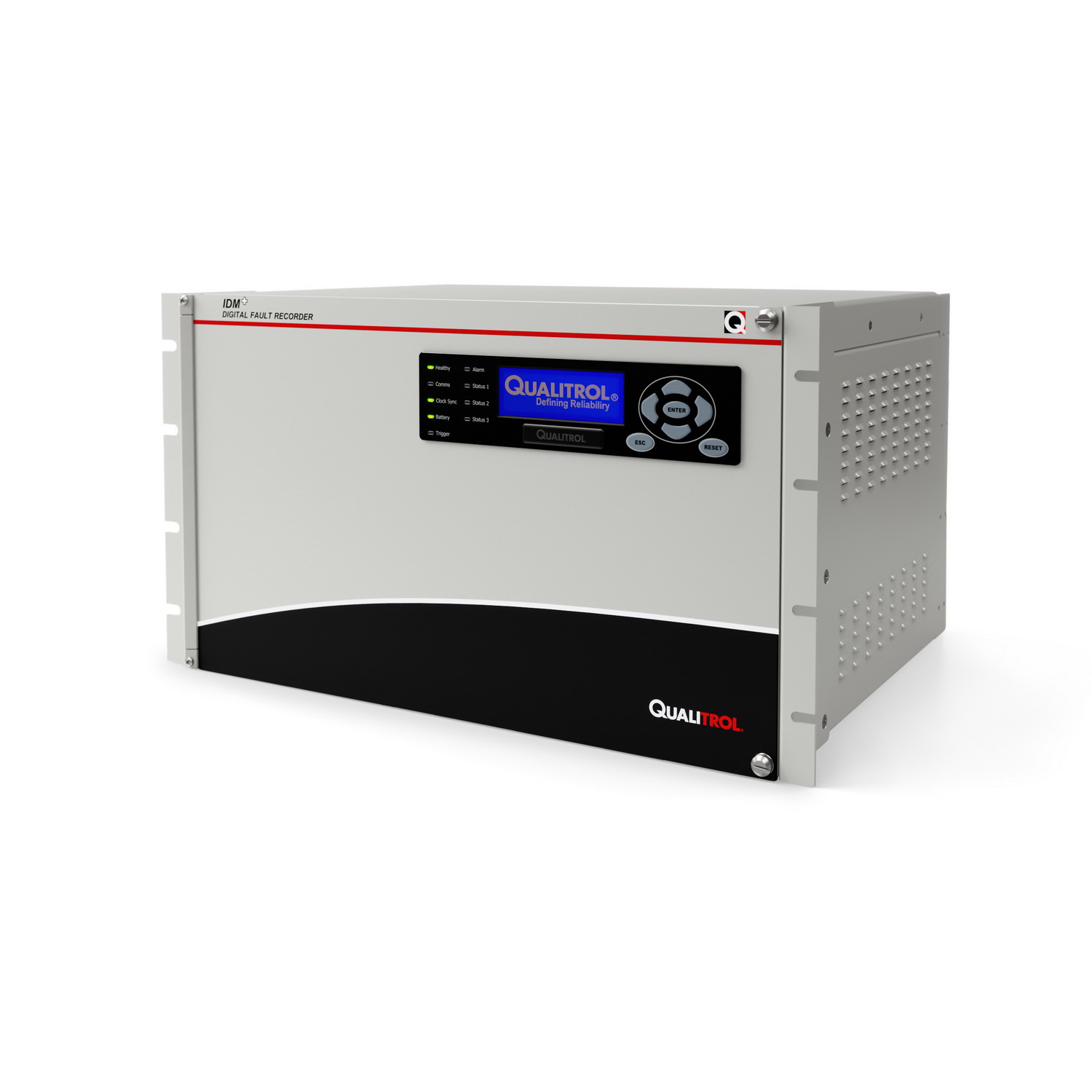

Qualitrol IDM+ Multifunction Power System Monitor

Qualitrol IDM+ Multifunction Power System Monitor

0.00

Qualitrol IDM+ is a multifunction substation monitor offering advanced digital fault recording and long duration disturbance monitoring.

The platform enables users to option additional functionality as needed, including:

  • phasor measurement in compliance to the IEEE C37.118 2005 specification;

  • the most accurate fault location available using travelling wave methodology

  • and Class A Power Quality in compliance with IEC 61000-4-30 Class A (Ed 2.0).

IDM+ supercedes the highly successful IDM.

Add To Cart


IDM+ by Qualitrol:
the most accurate fault location system

The IDM+ multifunction power system monitor offers a wide variety of functions utilised in substations today.

Combining standard features of digital fault recording and dynamic disturbance monitoring with the options of phasor measurement, power quality and highly accurate travelling wave fault location, the IDM+ family is designed to leverage investment with the key functions combined within one device.



Talk to a Power System Expert

Talk to a member of our team for more information on
the Qualitrol IDM+ range.




QUALITROL IDM+ FEATURES

Utilises the most accurate measurement chain including sampling rate of 512 samples per cycle and analog resolution of 20 bits on current channels

Option of travelling wave fault location with accuracy of ±60 meters (200 feet)

Full solid state device and high reliability – all data stored on Compact Flash

Advanced iQ+ client-server multifunction master station software

Achieve cost effective, integrated, automated substation integration with IEC 61850

Advanced HMI provision

Flexible sampling rates for fault and disturbance monitoring



IDM+ APPLICATION

This comprehensive power system monitor provides multiple power system functions in a single device to maximise the utilisation of the power network at minimum cost. Ideal for use in substations, generating stations and large energy users.





QUALITROL iQ+ SOFTWARE FOR MULTIFUNCTION POWER SYSTEM MONITORING

Qualitrol iQ+ is an all-in-one application to manage all Qualitrol substation monitors and power system applications. It is a complete software package for the configuration, collection and analysis of data from the Qualitrol range of PSPM products.
