Monitoring System Behaviour

Dynamic Disturbance Recording (DDR) involves capturing incidents that represent behaviour of the power system during dynamic events, such as low frequency oscillations, abnormal under/over frequency, voltage excursions and system’s wide transients.

DDR can be used for wide-area disturbance monitoring to analyse the system’s transient and post-transient response and predict system model performance.

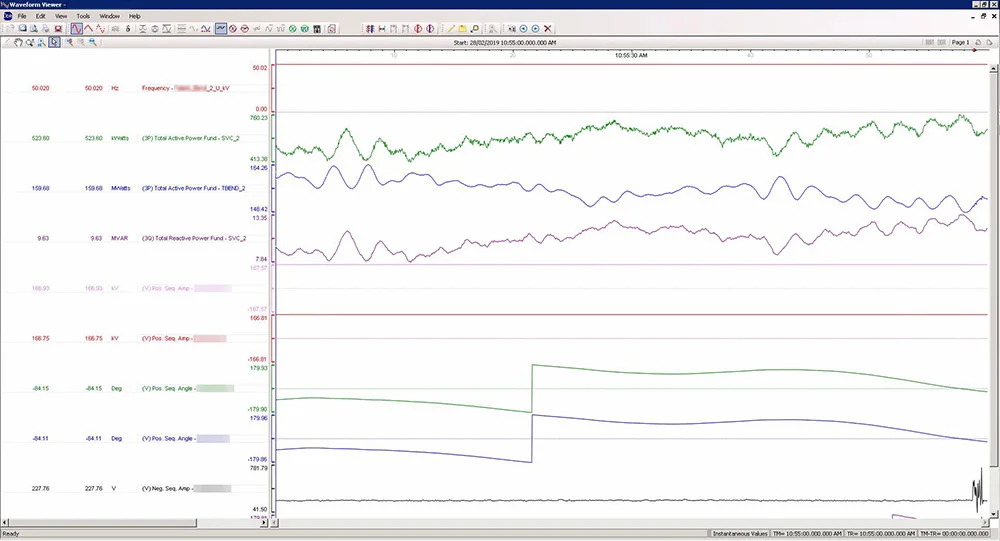

DDR-C Continuous slow scan calculated channels-s.jpg

Continuous Dynamic Disturbance Recording (DDR-C)

A slow scan function providing recorded calculated quantities at scan rates up to two per cycle, for up to 30 days for long term power stability monitoring.

Calculated quantities available include rms voltage and current, real and reactive power, sequence components and frequency.

DDR-T triggered slow scan calculated channels-s.jpg

Triggered Dynamic Disturbance Recording (DDR-T)

Slow speed recording monitoring specified calculated power quantities for up to 30 minutes before, during and after a transient fault or disturbance at scan rates up to two per cycle.

Calculated quantities available include rms voltage and current, real and reactive power, sequence components and frequency.


The DDR function in Fault Recorders provides information when step changes in generation or load due to unexpected system events cause frequency, power and voltage fluctuations.

- Qualitrol


Dynamic Disturbance Recording
by Qualitrol


The Qualitrol IDM+ fault and disturbance recorder provides comprehensive slow scan functionality, enabling continuous recording over long periods - before, during and after a transient fault or disturbance.

Qualitrol IDM+ Multifunction Power System Monitor.jpg


Qualitrol IDM+ for dynamic disturbance recording capability in a multifunction power system monitoring device.


iQ+ Master Station Software

iQ+ provides flexible data management and fully customisable viewer display for DDR-C and DDR-T records.


Flexible sampling rates for disturbance monitoring

  • Ability to set DDR sample rates from 100 Hz to 6.25 Hz on 50 Hz systems.

  • Select up to 32 calculated analog parameters, 64 digital inputs and 128 Goose statuses for inclusion in a DDR record.

  • up to 30 days rolling buffer dependent on Compact Flash size and other configured settings.


Multi-function Capability

Qualitrol iQ+ is not just for Dynamic Disturbance Recording. It is a complete network monitoring software package for the configuration, collection and analysis of data from the Qualitrol range. This includes Digital Fault Recording, Dynamic Disturbance Recording, Travelling Wave Fault Location, Power Quality Monitoring and Phasor Measurement.

IEC 61850 Ready

With IEC 61850 Ed.2 fully utilised within the IDM+, the Qualitrol PSM platform is designed to meet both current and future state substation automation architectures.


Get Expert Advice

Talk to our Expert PSPM Team about your power
system monitoring challenges.


DDR in Australia: HSM and FCAS

In Australia, the Qualitrol IDM+ has been used for over a decade to deliver custom monitoring and reporting to the energy market operator AEMO.

Pre-calculated quantities in IDM+ enable the device to be used in conjunction with FCAS and HSM RP software. These systems collect the calculated quantities directly from the IDM+ units and prepare them to be sent to AEMO.


Power Plant Dynamic Disturbance Monitoring

Reviewing Generation DDR monitoring needs, difficulties and possibilities

Nearly all power plants today are supervised by Digital Control Systems (DCS) and most, though not all, of these DCS provide some form of trend recording. Nearly all plants now have a Plant Information (PI) system, either as an integrated part of their DCS or as a free standing unit. This paper presents considerations relating to the monitoring of power plants to meet the requirements of transmission grids for information on their dynamic behaviour.
