Qualitrol Q-PMU Phasor Measurement Unit

Qualitrol Q-PMU Phasor Measurement Unit

0.00

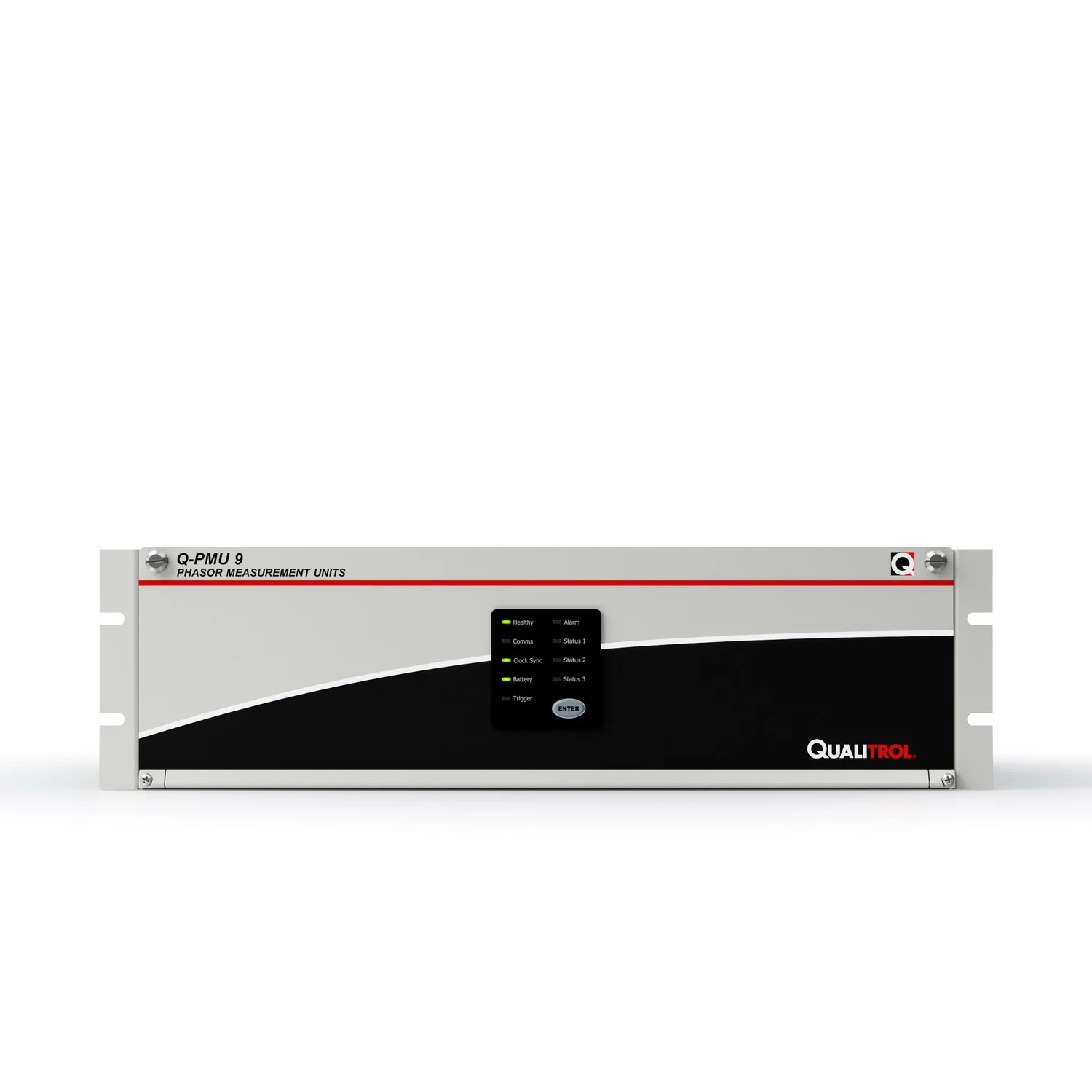

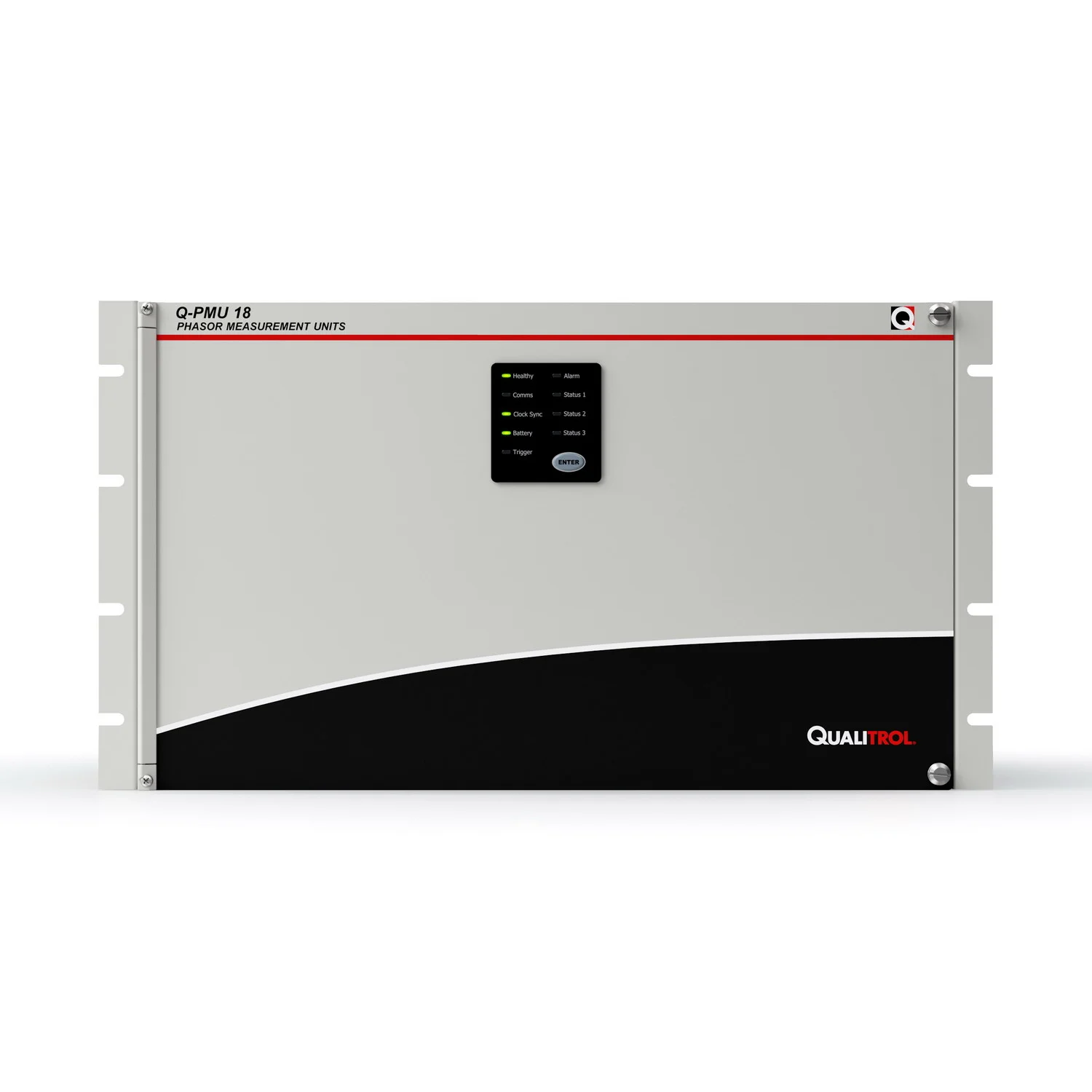

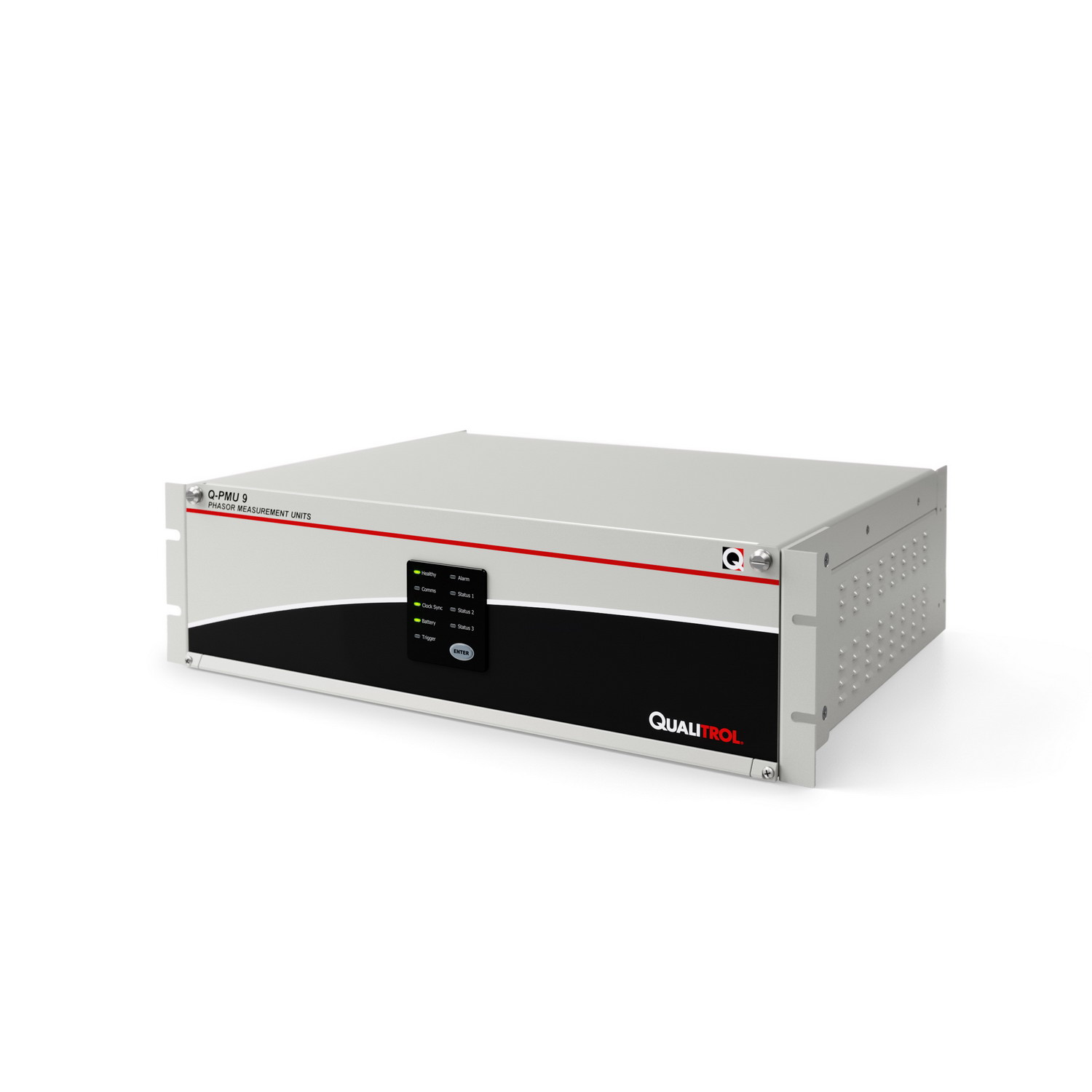

Qualitrol Q-PMU is scalable and modular substation hardened Phasor Measurement Units for connection to up to ten three phase circuits to calculate and stream phasors.

It enables various wide area measurement, protection and automation applications based on streaming synchronized phasor measurements and digital status.

Add To Cart


Q-PMU by Qualitrol:
Scalable phasor measurement

TheQ-PMU is a modular and scalable platform with full compliance to IEEE C37.118 (2005). Each unit provides synchronised streaming support for maximum of 36 phasors and 64 digital inputs.



Talk to a Power System Expert

Talk to a member of our team for more information on
the Qualitrol Informa PMD-A range.




QUALITROL Q-PMU FEATURES

Synchronised streaming support for maximum of 36 phasors and 64 digital inputs

Ideal for use when a multifunction device cannot be justified

Modular and scalable platform with full compliance to IEEE C37.118.1-2005

Simple configuration using standard web browsers

Complies to industry security requirements

No need for any other software package



Q-PMU APPLICATION

TheQ-PMU is built for for a system wide phasor measurement unit installation at generation, transmission and distribution locations. Flexible and optimised channel utilisation for effective high-speed transmission applications to low cost distribution synchronising applications.





QUALITROL iQ+ SOFTWARE FOR PHASOR MEASUREMENT CONFIGURATION

Qualitrol iQ+ is an all-in-one application to manage all Qualitrol substation monitors and power system applications. For the Phasor Measurement application, iQ+ provides device setup and configuration.

iQ+ master station software for power system performance monitoring.png



SERVICES FOR POWER SYSTEM MONITORING

Our Expert Team support the whole-of-life utilisation of Qualitrol and Insulect monitoring systems - from system design, build and installation, to professional training, system maintenance and expert analysis.


System Design & Development

We work closely with end user teams to understand their challenges, information needs and existing architecture, so to help guide future specifications and investment decisions.

LEARN MORE



System Support Plans

Our team can support system setup, from integration with existing architecture, through to triggering, automated actions and report writing.

LEARN MORE



Hardware Repairs & Upgrades

Full technical service, repairs and testing with locally stocked spare parts. Hardware upgrades to latest architecture using existing wiring.

LEARN MORE

Training Programs

With hundreds of installations across Australia, our network monitoring team has plenty of experience in the capture and utilisation of important fault and disturbance data.

LEARN MORE



Expert Analysis

We offer a range of services to support the lifetime operation of monitoring hardware and can customise this to suit individual networks.

LEARN MORE



PHASOR MEASUREMENT CASE STUDIES





PHASOR MEASUREMENT + MULTI-FUNCTION

IEEE C37.118 phasor measurement capability can also be provided using the multifunction hardware platform Qualitrol IDM+

This scalable platform is the product of choice when multiple monitoring functions are required. Digital Fault Recording and Dynamic Disturbance Monitoring as standard. Other functions such as PQ, TWS FL and PMU can be added as required.



POWER SYSTEM MONITORING, BY INSULECT

From base load and renewable generation, to transmission, large energy users and distribution connection points, we deliver the capability to rapidly diagnose and action network problems. Our industry leading monitoring systems are backed by our local team of monitoring experts and whole-of-life system support services.
