FCAS Provider Obligations

The regulation of frequency in the National Electricity Market is managed through frequency control ancillary services (FCAS) – one of four ancillary services used by AEMO to manage the power system securely and safeguard supply quality.

FCAS providers (registered power generators) who bid their services into the FCAS markets must be able to show their conformance to the ancillary services specification. Insulect provide an FCAS conformance monitoring solution that is operating in numerous monitoring applications across the power system.



FCAS is concerned with balancing power supply and demand over short time intervals throughout the power system. This is done by maintaining appropriate levels of contingency reserve and regulating reserve.

AEMO procures FCAS to ensure that when an event occurs on the power system – e.g. loss of the largest generator or loss of an inter-connector and subsequent islanding of a region – frequency is maintained within the standards.

Constraint equations are used by AEMO to determine the amount of FCAS required for each of the 8 services. Constraints are used to specify global requirements, local requirements for one or more regions, and for co-optimisation of local FCAS requirements against inter-connector flow in the event of the inter-connector being declared a credible contingency risk.

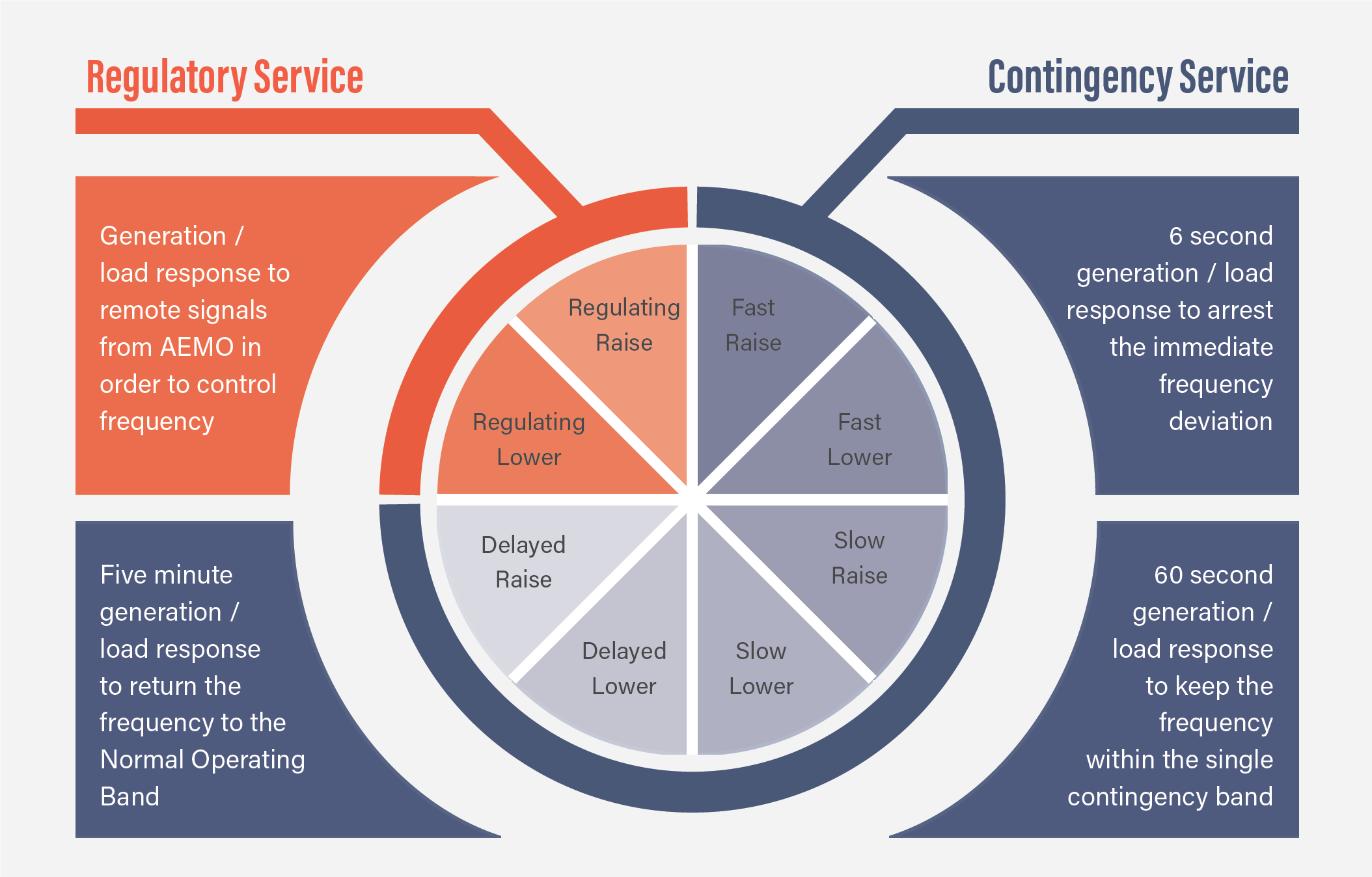

FCAS diagram insulect conformance monitoring.png

Requirements of an FCAS Conformance Reporting System

Flexible Sampling Rates

Flexible DFR sampling rates of up to 512 samples per cycle meets both Fast Raise and Slow Raise services required for FCAS. Flexible DDR sampling rates of up to 100 Hz for continuous recording.

Simultaneous Measurements

Simultaneous measuring of the fault current eliminates need to decrease full scale deflection (FSD) of analogue channels to achieve better accuracy.


Data Automation

Automatic polling, decimation, conversion and reporting are standard using Autopoll or iQ+ software, simplifying the reporting task.

Multifunction system

In addition to FCAS conformance, the IDM+ / iQ+ system is well suited to broader generation power system monitoring and compliance reporting.

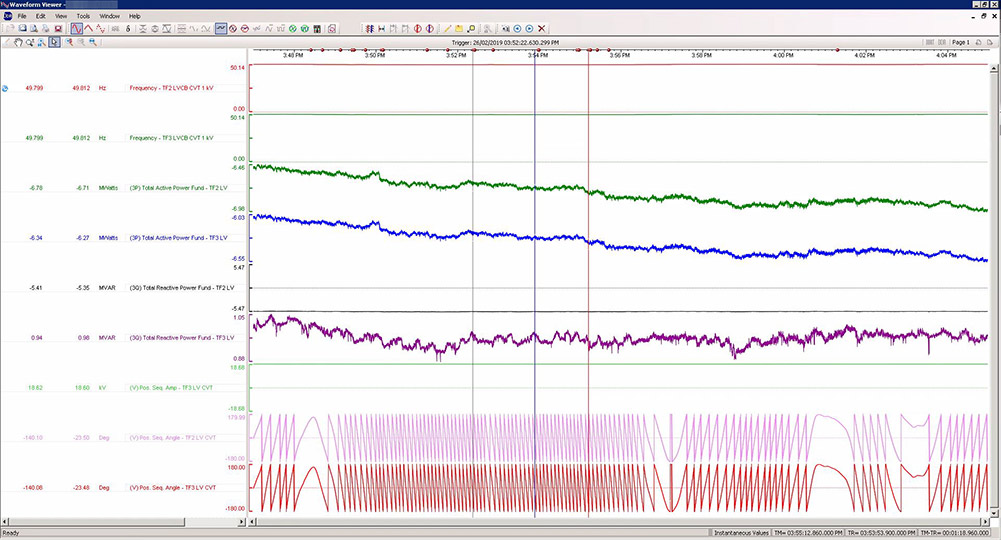

DDR-T triggered slow scan calculated channels-s.jpg

FCAS conformance data requires a monitoring device with a minimum Sampling Rate of 20Hz to meet the fast raise service and a Decimation Application to meet the slow raise services

- Insulect


FCAS Conformance Monitoring
by Qualitrol


The FCAS Monitoring application is delivered using the Qualitrol IDM+ platform, a multifunction power system monitor that has been performing this function for well over a decade across Australia.

In order to capture the required FCAS conformance data, the power flow representing the amount of generation and the local frequency must be measured at or close to each of the relevant connection points (National Electricity Rules 3.11.7a).

The combination of the modular Qualitrol IDM+ monitor and iQ+ software is being utilised in several generation monitoring applications across Australia, New Zealand and around the world.

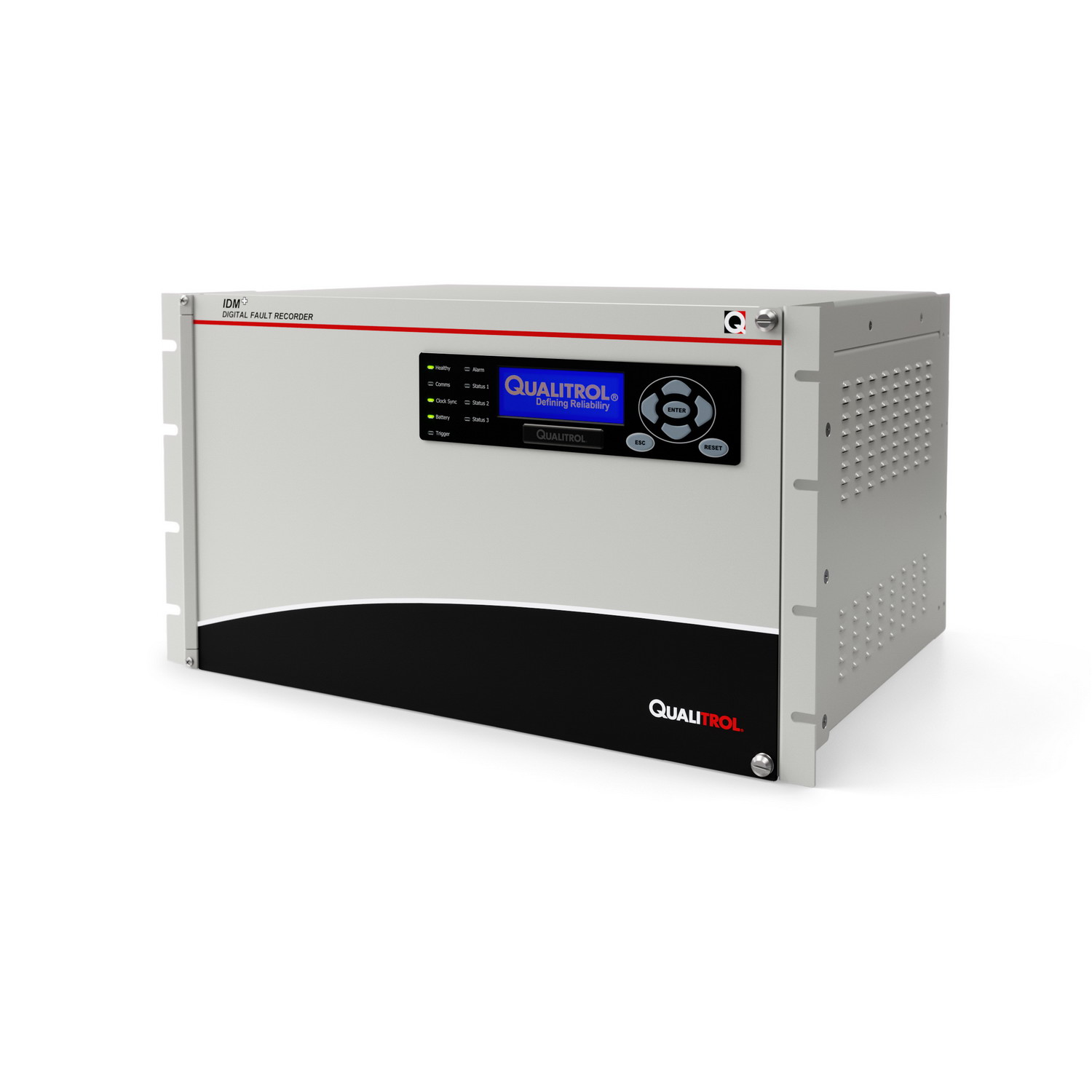

Qualitrol IDM+ Multifunction Power System Monitor.jpg


Qualitrol IDM+ for high speed monitoring capability in a multifunction power system monitoring device.


FCAS Conformance Software

Generators can meet their FCAS Conformance obligations using the Qualitrol platform with one of two software systems.

Qualitrol iQ+ is the main software for multifunction power system monitoring.

Qualitrol Autopoll is a standalone software specifically designed for FCAS reporting.


FCAS with iQ+

  • Standard automatic decimation in iQ+ software via “Decimation Factor” feature (no need for custom software)

  • Embedded auto comtrade program in iQ+

  • Exporting to CSV file from iQ+ and waveform viewer program enables transfer of waveforms to spreadsheets

  • Automatic reporting functions with notification and delivery via email, text message, server location

FCAS with Autopoll

  • Standalone polling software provides simple solution for FCAS data capture - does not require iQ+ software

  • Polling up to 50Hz with a maximum of 5 devices - auto-comtrade

  • Polling up to 1Hz with an unlimited number of devices - auto-comtrade

  • Includes DDR-T and DDR-C triggered and continuous data capture


Multi-function Capability

Qualitrol iQ+ is not just for FCAS Reporting. It is a complete network monitoring software package for the configuration, collection and analysis of data from the Qualitrol range. This includes Digital Fault Recording, Dynamic Disturbance Recording, Travelling Wave Fault Location, Power Quality Monitoring and Phasor Measurement.

IEC 61850 Ready

With IEC 61850 Ed.2 fully utilised within the IDM+, the Qualitrol PSM platform is designed to meet both current and future state substation automation architectures.


Get Expert Advice

Talk to our Expert PSPM Team about your
power system monitoring challenges


FCAS Reporting System

For a summary on the FCAS application and how Insulect provide a multifunction solution for Generation power systems, download our application note.


Learn more about Generation Power System Monitoring

Browse our technical papers on PSPM applications for Power Generation to find out more about how Qualitrol systems are being used to provide advanced monitoring capability and better outcomes for power generators.


Insulect Power System Monitoring Services.jpg

Power System Monitoring Services

System Design & Development

Insulect provide complete monitoring system development, working in collaboration with customer teams to provide engineering design, panel build and integration, system commissioning and software configuration. We design systems to best meet customer challenges, information needs and existing network architecture.

System Support Plans

The real network monitoring task only begins once a system is commissioned. Which is why we support our customers’ systems through our Support Plans. The plans cover health check reporting, fault ID and remote diagnosis, maintenance and repair, firmware and software upgrades, helpdesk and more.

Training Programs

Our expert engineering team provide application-based training programs covering all Qualitrol products and network monitoring applications. All training is delivered by our Qualitrol Certified trainers. Customisable to meet enterprise-level training needs.


Expert Analysis

Our Expert Engineers collaborate with customer teams to evaluate system design, investigate incidents and identify improvements to increase uptime. With hundreds of installations across Australia, our Qualitrol-certified team has extensive experience with real-world fault and disturbance data.


Hardware Repairs & Upgrades

Insulect have a Qualitrol certified service centre in Brisbane for fast response with minimum downtime. Full technical service, repairs and testing with locally stocked spare parts. Hardware upgrades of older generation IDM T3/T5 to the new IDM-E / IDM+ architecture utilising existing wiring.


Other Network Monitoring Applications





















Talk to an FCAS Reporting Expert

Whether you're a Power Generator that is already an FCAS participant or you’re looking to become one, our team can help you understand how the FCAS reporting process can be simplified for your organisation.
