Single Phase Isolating Links

Single Phase Isolating Links

0.00

Insulect HV Links are installed throughout distribution networks and in substations as isolation points between HV apparatus.

  • Designed, manufactured and tested in Australia by Insulect in accordance with AS and IEC Standards

  • Available in 12/24kV, 36kV and 72.5kV Voltage ratings with a load current rating of 630 amps to 1250 amps

  • Load Break available up to 36kV 630A

  • Single and Double Insulator designs available

  • Field Earthing facilities available

  • Two finger operating Blades with pressure springs ensures excellent conductivity and avoids any hot spots during operation

  • Flicker blades for contact protection

  • Load Break design

Add To Cart



HV ISOLATING LINKS SPECIFICATION

Insulect provide custom designed Isolating Links to suit individual network requirements and applications.

Insulect HV Links are installed throughout distribution networks and in substations as isolation points between HV apparatus.





Wide voltage rating

Between 12kV and 72.5kV, with current rating up to 1600A.


Three mounting configurations

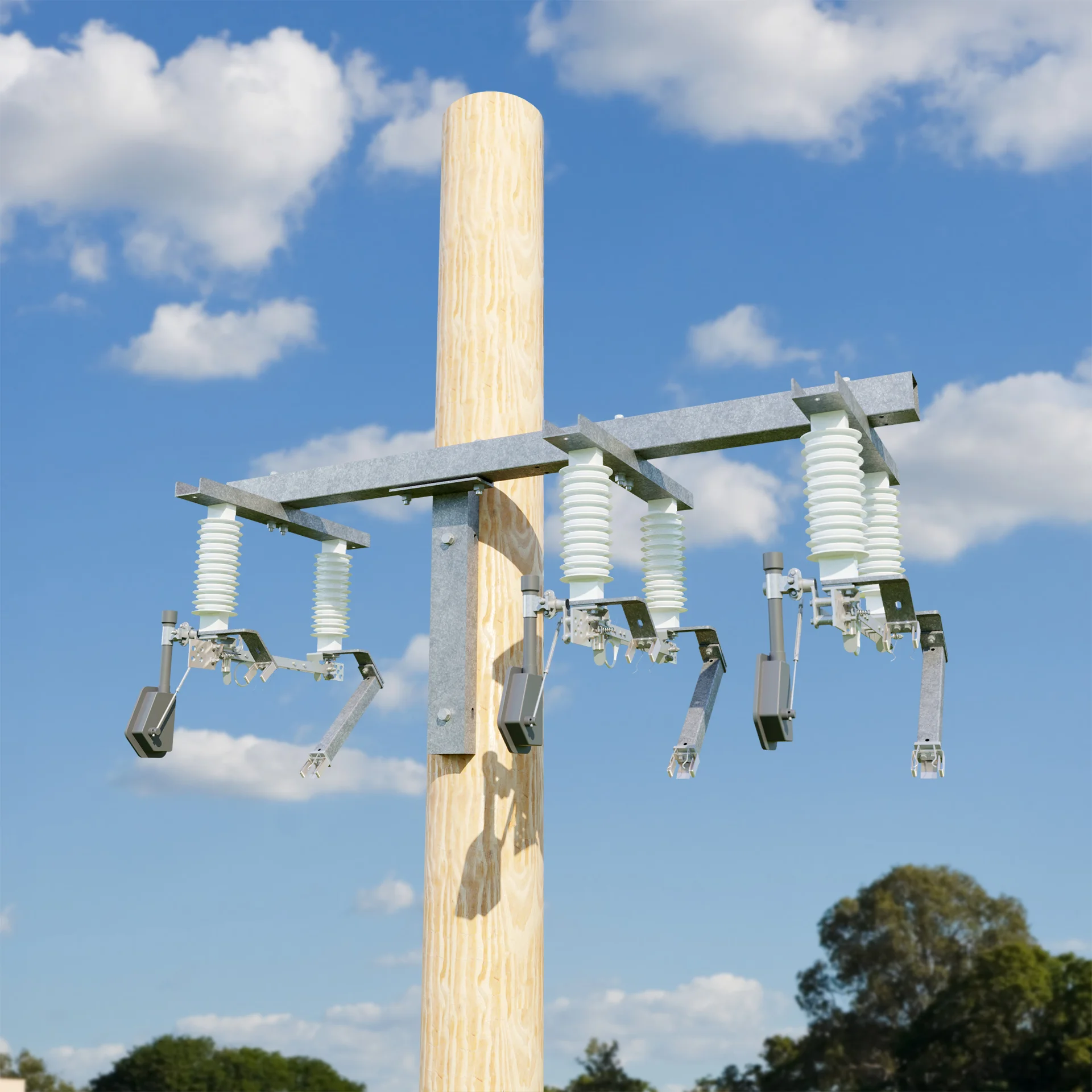

Mounted at 30 degrees, vertically or underslung orientations.


Load break capability

Flicker blades or 630A load breaking devices.


Local design and testing

In accordance with AS 62271.102 / IEC 62271.102
